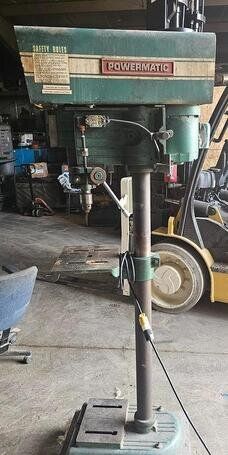

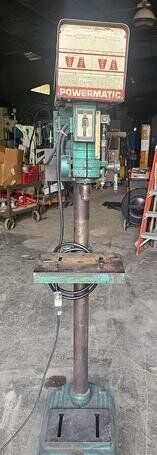

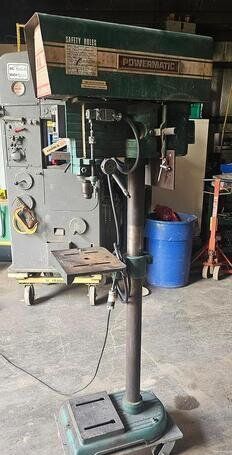

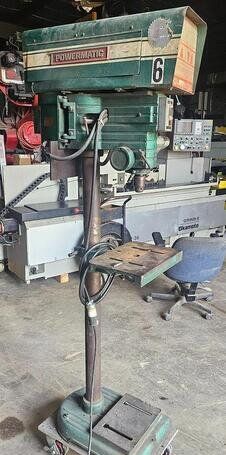

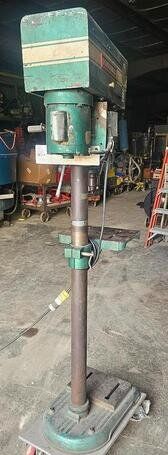

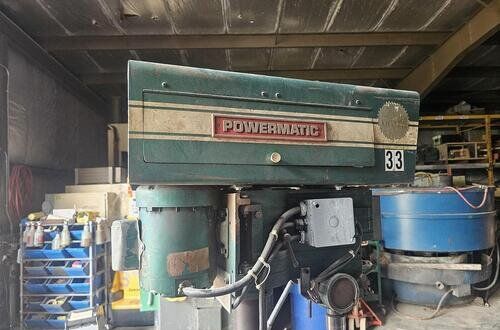

15" POWERMATIC 1150 4-SPINDLE DRILL

Specifications

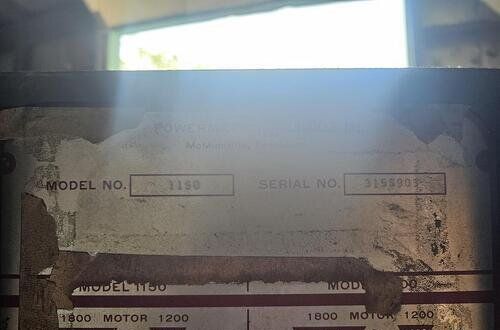

Model1150
BrandPOWERMATIC
TypeVertical Machining Centers
catalogid5193
mfgPOWERMATIC
mpn1150
title15" POWERMATIC 1150 4-SPINDLE DRILL
joinSig

Zero? Available Machines

Available Machine # Ez18323

  • Stock#:Ez18323
  • Price:$5,500
  • Year:N/A
  • Region:Northeast
  • Condition:Used

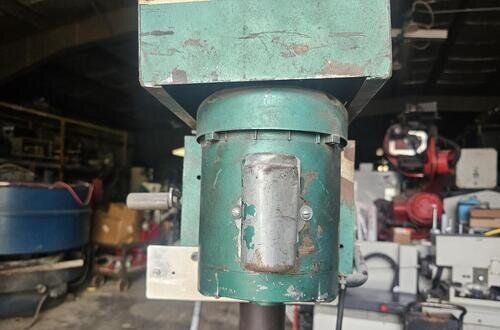

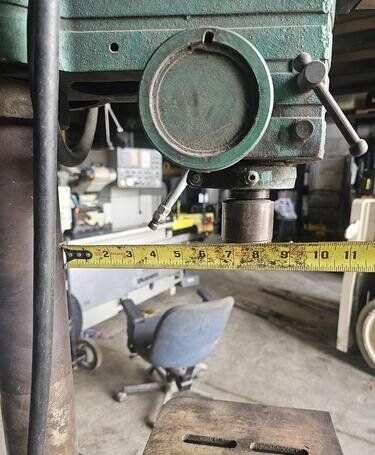

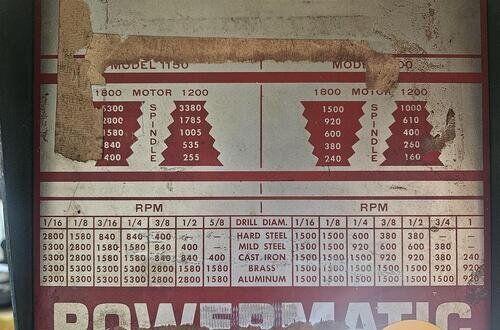

SPECIFICATIONS: Spindle Speeds: 300 to 3200 RPM Variable Spindle Taper: #2 Morse Spindle Travel: 6" Table Work Area Size: 14-3/8" x 65-1/2" Table Overall Size with Coolant Trough: 25" x 70-1/2" Distance Floor to Table Top: 34-1/4" Distance Spindle Apart on Center: 16-3/4" Distance Spindle Nose to Table Top: 6-3/8" Min. to 26" Max. Center Line of Spindle to Column Post Collar: 6-7/8" Center Line of Spindle to Column Post: 7-1/2" Column Diameter: 3" Quill Diameter: 2-3/16" EQUIPPED WITH: Push Button On-Off Switch for Each Head Manually Adjustable Quill Depth Stop Assembly for Each Head Designed for Coolant Use BUT NO Coolant System Vertical Head Adjustment via Manual Hand Crank and Gear Rack Heads Swivel on Column Post 3/4 HP Motor for Each Head, 1140/950 RPM, 60/50 Hz Wired for 3 Phase, 60 Hz, 208/220/240 Volts Overall Size: 70-1/2" L-R x 31" F-B x 77" High x ? Lbs.
