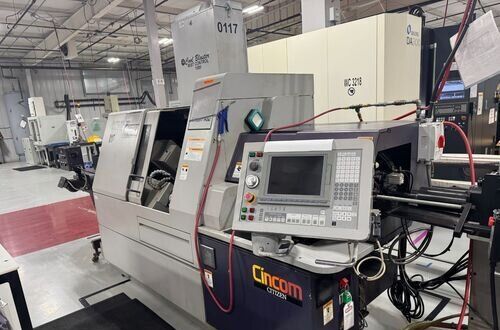

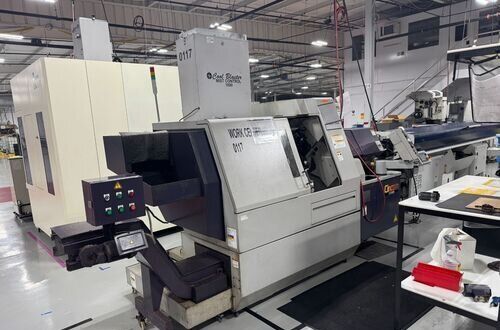

CITIZEN M32 Swiss Type Automatic Screw Machines

Specifications

ModelM32
BrandCITIZEN
TypeVertical Machining Centers
Weight6834 lbs.
Length109"
Width48"
Height66"
TableL12.8"
Power7.5 HP Rotary Tool Motor 0.5 HP
RPM180 - 8000 RPM Rapid Traverse Rates (X / Z) 590 / 708 IPM Rotary Tool Speed 200 - 5000 RPM
XX1-Axis Travel 0.75" X2-Axis Travel 0.75"
YY1-Axis Travel 1.0"
ZZ1-Axis Travel 4.92" Z2-Axis Travel 12.6"

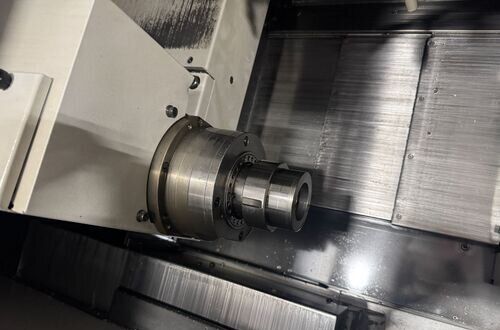

TaperBack Spindle Index 1 Degree Back Spindle Motor 3 HP Back Spindle Speed 180 - 7000 RPM
AxisMax Front Rotary Drilling/Tapping Dia. 0.27" / M6 Max Front Drilling/Tapping Dia. 0.47" / M12 Max Back Drilling/Tapping Dia. 0.39" / M8

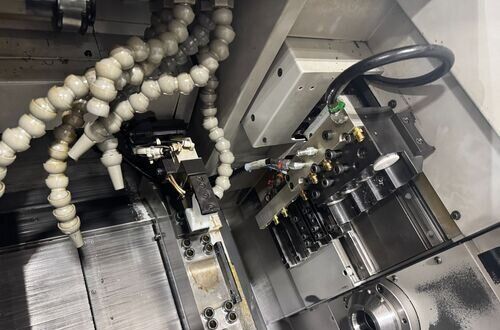

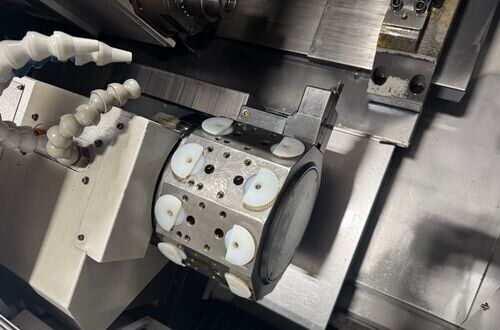

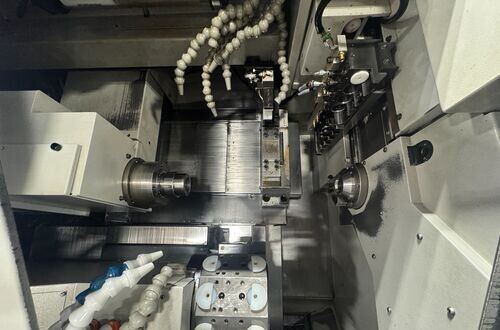

ATCMain Spindle Motor 7.5 HP Main Spindle Speed 180 - 8000 RPM Main Spindle Bore 1.41" Main Spindle Indexing 1 Degree Total Tools: 21 Turret 10 Positions, 20 Indexes Gang: Turning Tools 5 Live Tools 3 Backworking Tools 3
catalogid5598
mfgCITIZEN
mpnM32
titleCITIZEN M32 Swiss Type Automatic Screw Machines
joinSig

Zero? Available Machines

Available Machine # Ez43803

  • Stock#:Ez43803
  • Price:Call
  • Year:2001
  • Region:United States
  • Condition:Used
