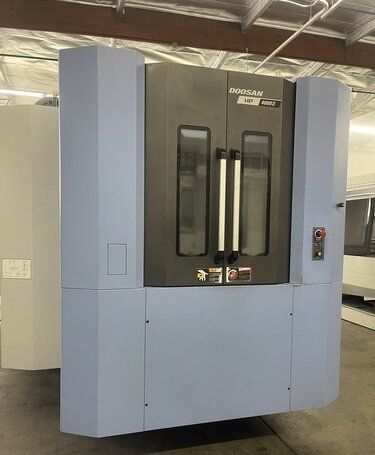

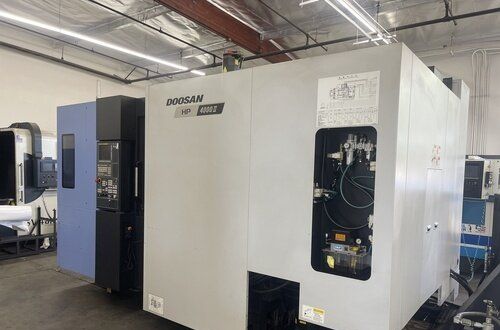

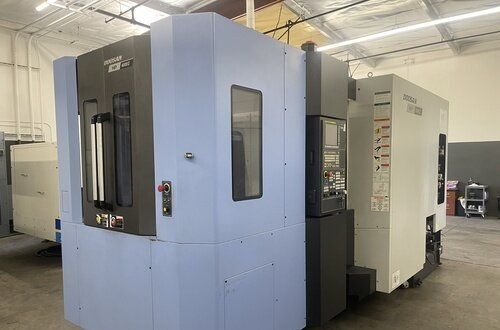

Doosan Hp4000ii Horizontal Machining Centers

Specifications

BrandDOOSAN
ModelHP4000II
TypeHorizontal Machining Centers
Lower64
X23.6 inch
Y22 inch
Z23.62 inch
Power22 hp
RPM14000 rpm
Upper84
ATC40
PalletW15.75 inch
PalletL15.75 inch
Taper40 Taper

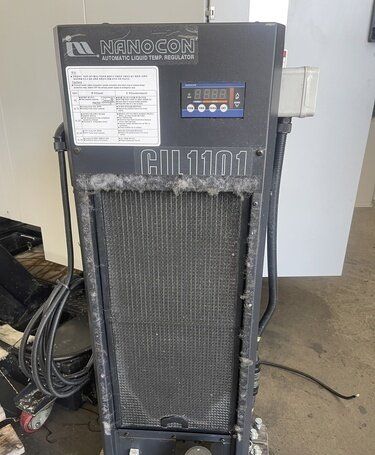

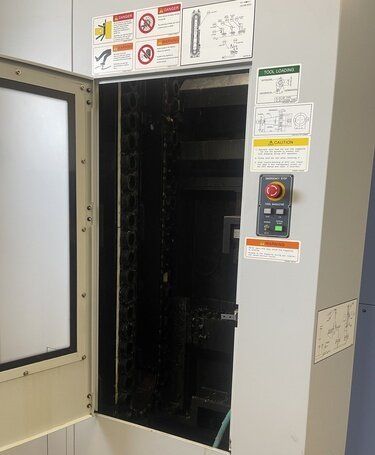

sellerspecBRNLPallet Size: 400 mm BRNLNumber of Pallets: 2 BRNLPallet Indexing: 1 Degree BRNLMax. Workpiece Weight: 881 lbs BRNLX-Travel: 23.62inch BRNLY-Travel: 22.04inch BRNLZ-Travel: 23.62inch BRNLSpindle Taper: 40 Taper BRNLSpindle Speed: 14,000 RPM BRNLSpindle Motor: 22 HP BRNLSpindle Center to Pallet Top: 2-24inch BRNLMax. Tool Diameter: 3.0inch BRNLMax. Tool Diameter (adjacent): 5.5inch BRNLMax. Tool Length: 13.0inch BRNLMax. Tool Weight: 22.0 lbs BRNLRapid Traverse: 2,362 IPM BRNLCutting Feed Rate: 1,181 IPM BRNLTool Changer: 40 ATC BRNLTool Change Time: 1 sec BRNLApprox. Machine Dimensions: 200inch x 102inch x 113inch BRNLApprox. Machine Weight: 27,557 lbs Equipped With: BRNLFanuc 31i-B CNC Control BRNLOil Chiller BRNLRigid Tapping BRNLWorklight BRNLFlood Coolant BRNLPortable MPG BRNLAPC Operator's Panel BRNLScrew ConveyorAbout the SellerView Company's Info Photos (1)Email this listing to an associateMore on this modelTo view more information on the DOOSAN HP4000II, including reviews, brand information, photos, videos, and more, click here.
catalogid3918
mfgDOOSAN
mpnHP4000II
titleDoosan Hp4000ii Horizontal Machining Centers
joinSig

Zero? Available Machines

Available Machine # Ez55850

  • Stock#:Ez55850
  • Price:Call
  • Year:2016
  • Region:Midwest
  • Condition:Used
