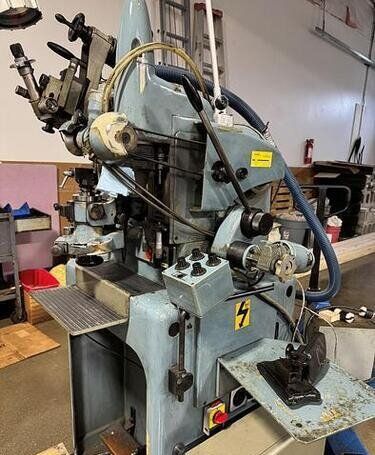

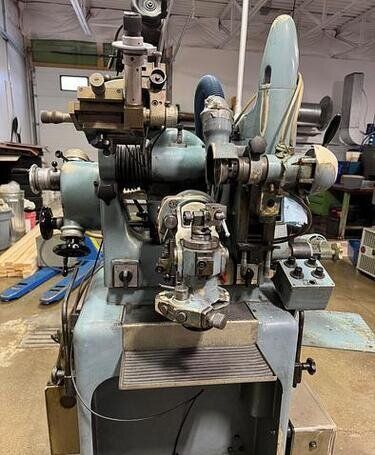

Ewag WS11 Tool and Cutter Grinder

Specifications

ModelWS11
BrandEwag
TypeVertical Machining Centers
Length36"
Width36"
Height64"
TaperW20
RPM8000 RPM
Power0.4 HP
X3.937"
Y3.937"
Z3.937"
catalogid4919
mfgEwag
mpnWS11
titleEwag WS11 Tool and Cutter Grinder

Zero? Available Machines

Available Machine # Ez14790

  • Stock#:Ez14790
  • Price:$32,500
  • Year:N/A
  • Region:Northeast
  • Condition:Used
New Date: Unknown Machine Model No. WS 11 New Date: Unknown Tool Capacity: 25 mm (0.984") (6) Axes: (3) Linear Axes: X, Y, Z (3) Rotary Axes: A, B, C X-Axis Travel, Longitudinal: 100 mm (3.937") Y-Axis Travel, Vertical: 100 mm (3.937") Z-Axis Travel, Infeed: 100 mm (3.937") A-Axis Rotation: -135 Degrees to +35 Degrees B-Axis Rotation: Infinite C-Axis: Tool Carrier Drives: Grinding Spindle: 0.3 kW (0.4 HP) Grinding Spindle Speed, Variable: 2500 to 8000 RPM Maximum Grinding Wheel Diameter: 75 mm (2.952") Tool Carrier: 0.37 kW (2.952 HP) Tool Carrier Speed, Variable: 100 to 1300 RPM Tool Carrier Taper: W20 Includes: Microscope Inspection Unit Floor Space: 36" x 36" x 64"
