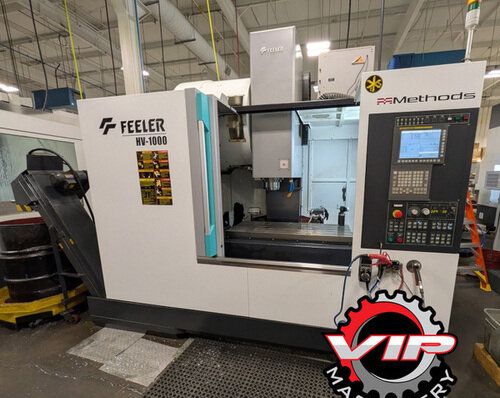

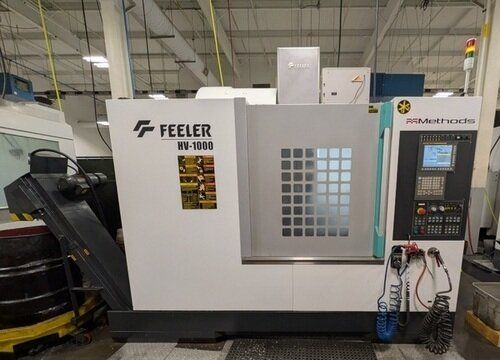

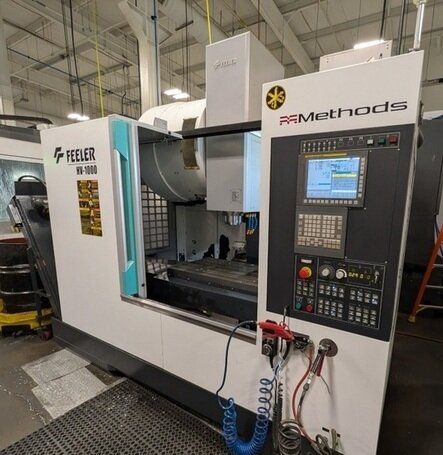

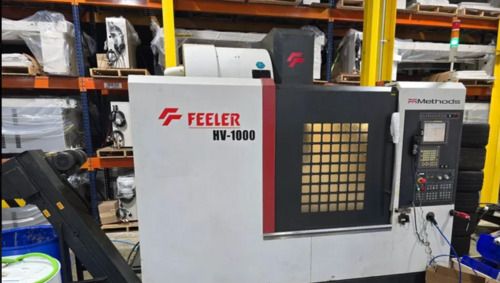

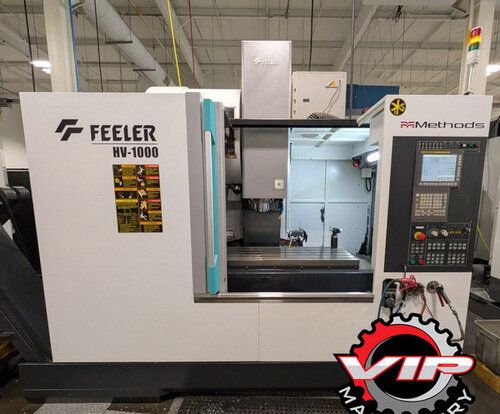

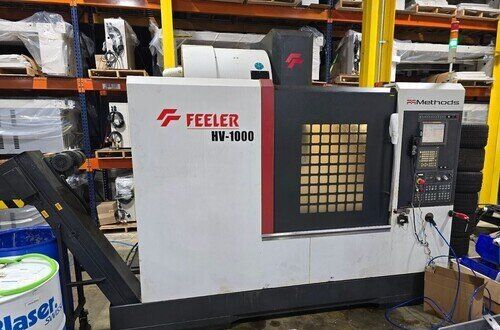

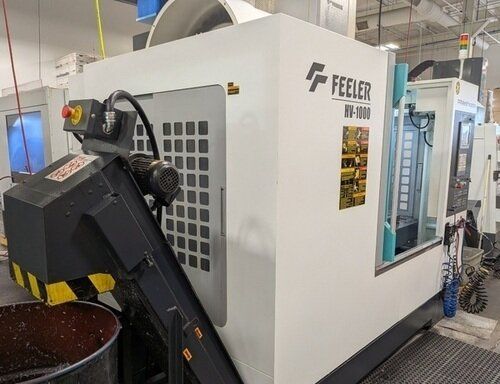

Feeler HV-1000 Vertical Machining Center

Specifications

ModelHV-1000
BrandFEELER
TypeVertical Machining Centers

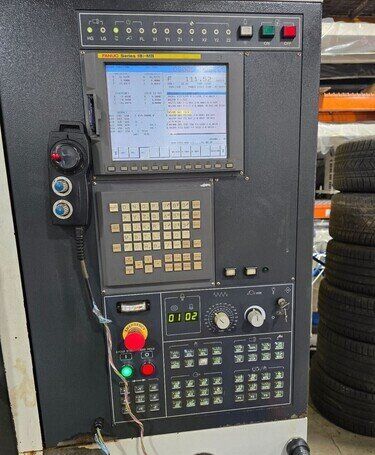

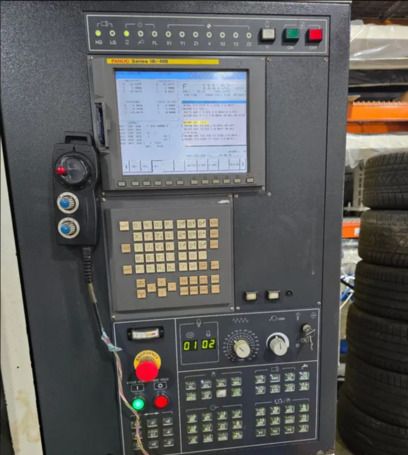

ControlCNC (FANUC 18IMB W/ 10.4inch LCD)
X39.37 inch
Y20.47 inch
Z19.88 inch
Power25 hp
RPM15000 rpm
ATC30
TableW45.3 inch
TableL20.5 inch
TaperBig Plus 40
Axis3
Dimensions162inchL x 86inchW x 118inchH
Weight15,760 lbs.
catalogid1994
mfgFEELER
mpnHV-1000
titleFeeler HV-1000 Vertical Machining Center

Zero? Available Machines

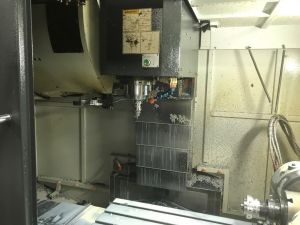

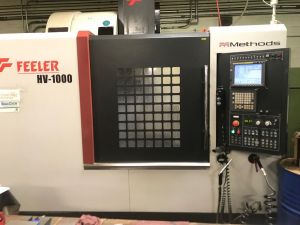

Available Machine # Ez16458

  • Stock#:Ez16458
  • Price:$47,500
  • Year:2011
  • Region:Midwest
  • Condition:Used

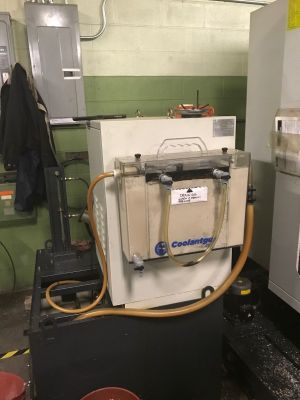

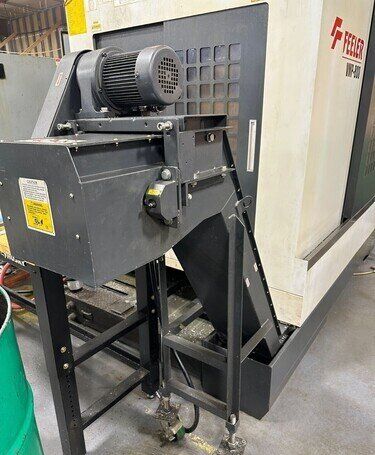

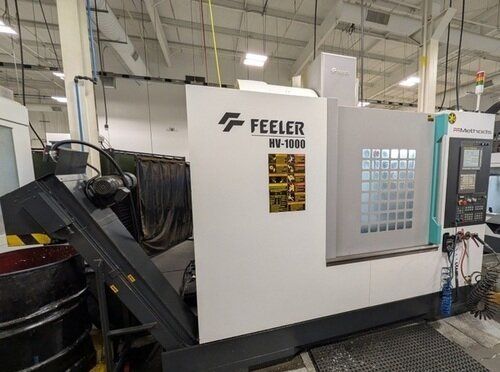

Specifications: Table Size 45" x 20.5" Max Table Load 1,100 Lbs X Axis Travel 39.37" Y Axis Travel 20.47" Z Axis Travel 19.82" Spindle Speed 15,000 RPM Spindle Motor 30HP Spindle Taper CT40 Big Plus Tool Stations 30 Side Mount Rapid Traverse Rates 2,362 X,Y/ 1,181Z IPM Max Tool Length 11" Machine Weight 16,000 Lbs Machine Dimensions 156"L x 86"W x 110"H Equipped With: Fanuc 18i-MB CNC Control 500 PSI High Pressure Thru Spindle Coolant Chip Conveyor 4th Axis Drives & Wiring (Rotary not Included) Big Plus Spindle
