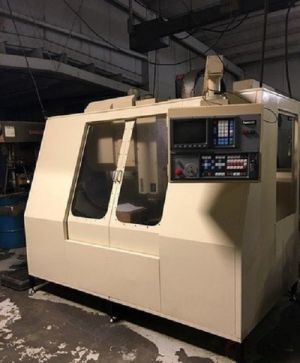

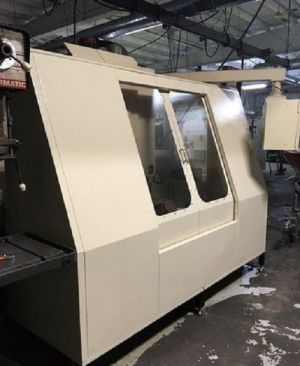

Giddings and Lewis 1400V Vertical Machining Center

Specifications

Model1400V
BrandGiddings and Lewis
TypeVertical Machining Centers
X29.5 "
Y17.7 "
Z17.7 "
Power7.5 HP
RPM5000 RPM

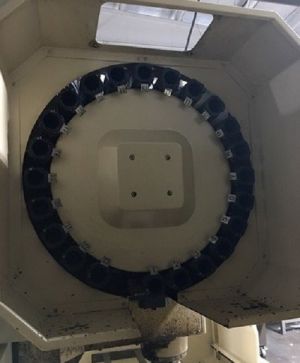

ATC24

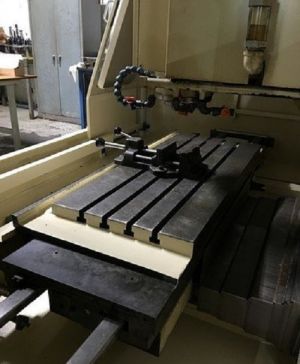

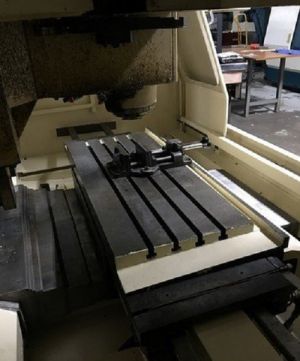

TableW18.1 "
TableL43.3 "
Axis3
Weight14,500 Lbs
TaperCAT40

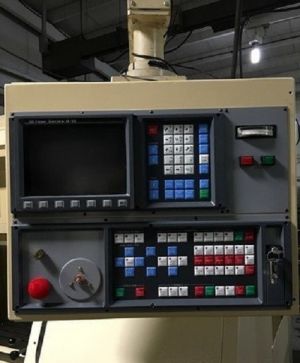

ControlCNC (Fanuc O-M)
catalogid5047
mfgGiddings and Lewis
mpn1400V
titleGiddings and Lewis 1400V Vertical Machining Center

Zero? Available Machines

Available Machine # Ez15393

  • Stock#:Ez15393
  • Price:$12,000
  • Year:1993
  • Region:Midwest
  • Condition:Used
Specifications: X Axis Travel 29.5" Y Axis Travel 17.7" Z Axis Travel 17.7" Table Size 18.1" x 43.3" T-Slots (Quantity) 4 T-Slots Size 709" Load Capacity 1100 lbs. Spindle Drive Motor 5.5 Kw/ 7.5 hp Speed Range 20-5,000 rpm Taper (CAT) 40 Spindle to Table 6.0"- 23.7" Spindle to Column 19.7" Feed Rates 1-118 Ipm Rapid Traverse (X & Y) 472 Ipm Rapid Traverse (Z) 394 Ipm Positioning (Full Travel) +/- .0002" Repeatability 00008" Tool Changer Storage Capacity 24 Maximum Adjacent Dia 3.2" Maximum Tool Length 11.8" Maximum Tool Weight 15.4 Lbs Machine Weight 14,500 Lbs Equipped With: Side Arm Tool Changer Two Speed Gear Box
