- Stock#:Ez65005
- Price:Call
- Year:1986
- Region:Midwest
- Condition:Used

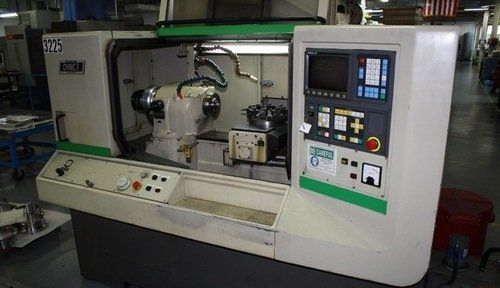

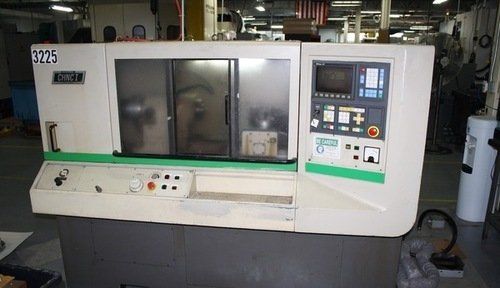

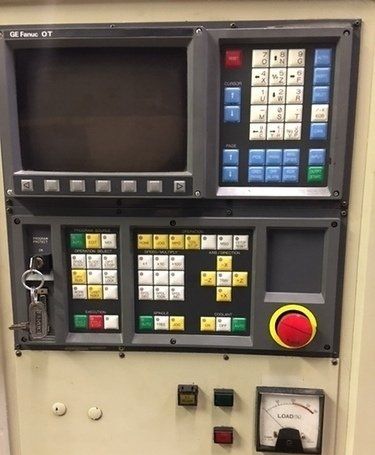

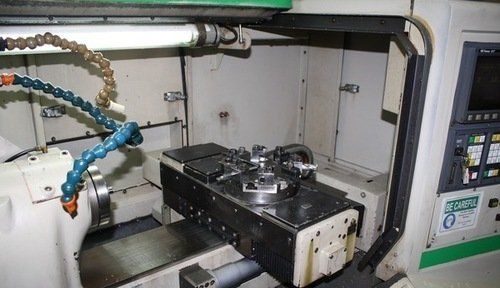

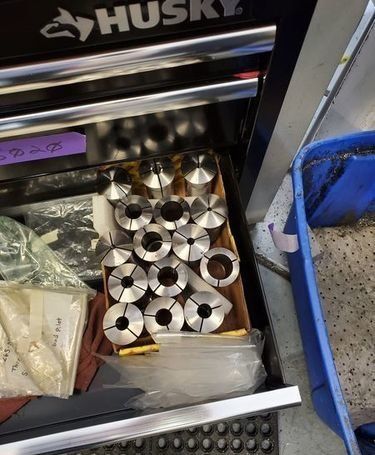

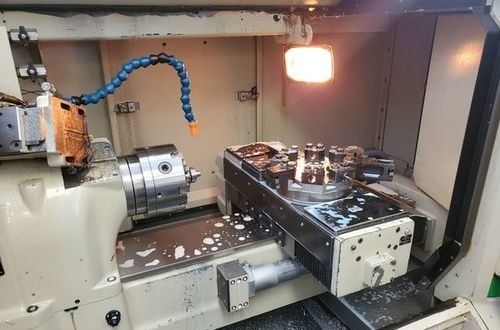

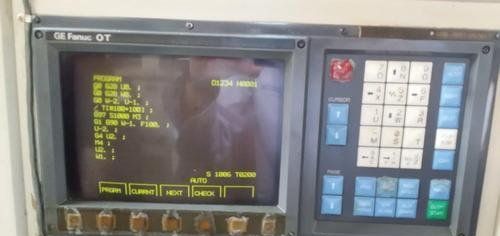

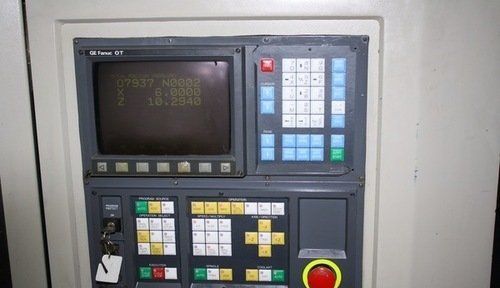

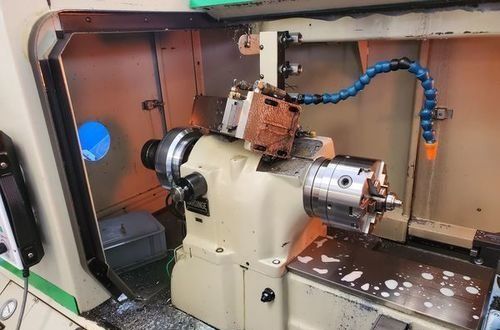

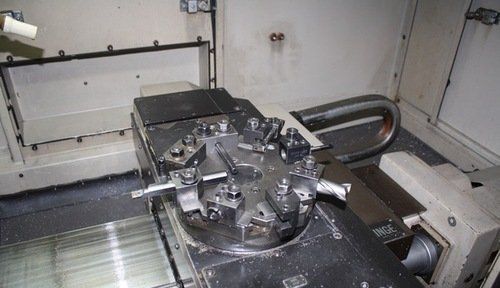

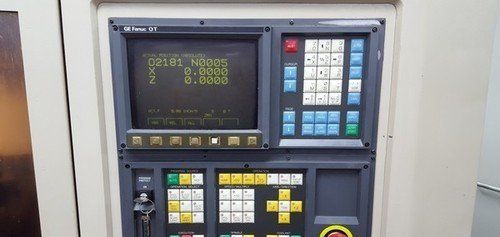

| EQUIPPED WITH Fanuc OT Control, Auto Splash Guard, Air Operated Draw-bar Complete Documentation SPEC SHEET Spindle: Spindle Type: ANSI A2-5" Hole Through Spindle: 1-3/4" 16C Collet Capacity: 1-5/8" Step Chucks Capacity: 6" Power Jaw Chuck (Gripping Capacity): 5" Expanding Collet Capacity: 3" Spindle Speed Range (1-rpm steps): 50 - 5,000 rpm AC Spindle Drive (continuous duty): 7.4 Horsepower AC Spindle Drive (max, intermittent duty 135% power rating): 10 Horsepower AC Spindle Drive (max, intermittent duty 162% power rating): 12 Horsepower Capacities: Maximum Swing Over Bed: 14" Maximum Threading Diameter: 8" Maximum Turning Diameter: 8" Maximum Fixture Diameter: 9" Maximum Allowable Weight on Spindle (Including Workholding Device): 75 lbs. Turret: Number of Stations: 8 Square Tool Size (Standard): 1/2" Round Tool Diameter (Standard): Up to 3/4" X-Axis Travel: 4-1/2" Z-Axis Travel: 12" Maximum X-Axis Traverse Rate: 200 ipm Maximum Z-Axis Traverse Rate: 400 ipm Maximum Distance from Turret Face to Spindle: 12-1/2" Indexing Time (Station 1 to 8): 2 Seconds Indexing Time (Station-To-Station): 1 Second Miscellaneous: Least Input Increment: 0.00010" Least Command Increment: 0.00010" Compressed Air Requirement: 70 Min. to 90 Max. PSI / 5 to 6 SCFM Maximum Recommended Ambient Operating Temperature: 113 DEG. F Coolant Sump Capacity: 30 U.S. gallons General: Electrical: 230/440 Volt, Three Phase, 50/60 Hz Overall Dimensions: 87" x 63" x 65" tall
|
