Kia Turn 28 CNC Turning Center Lathe

Specifications

Model28
BrandKia Turn
TypeCNC Lathes

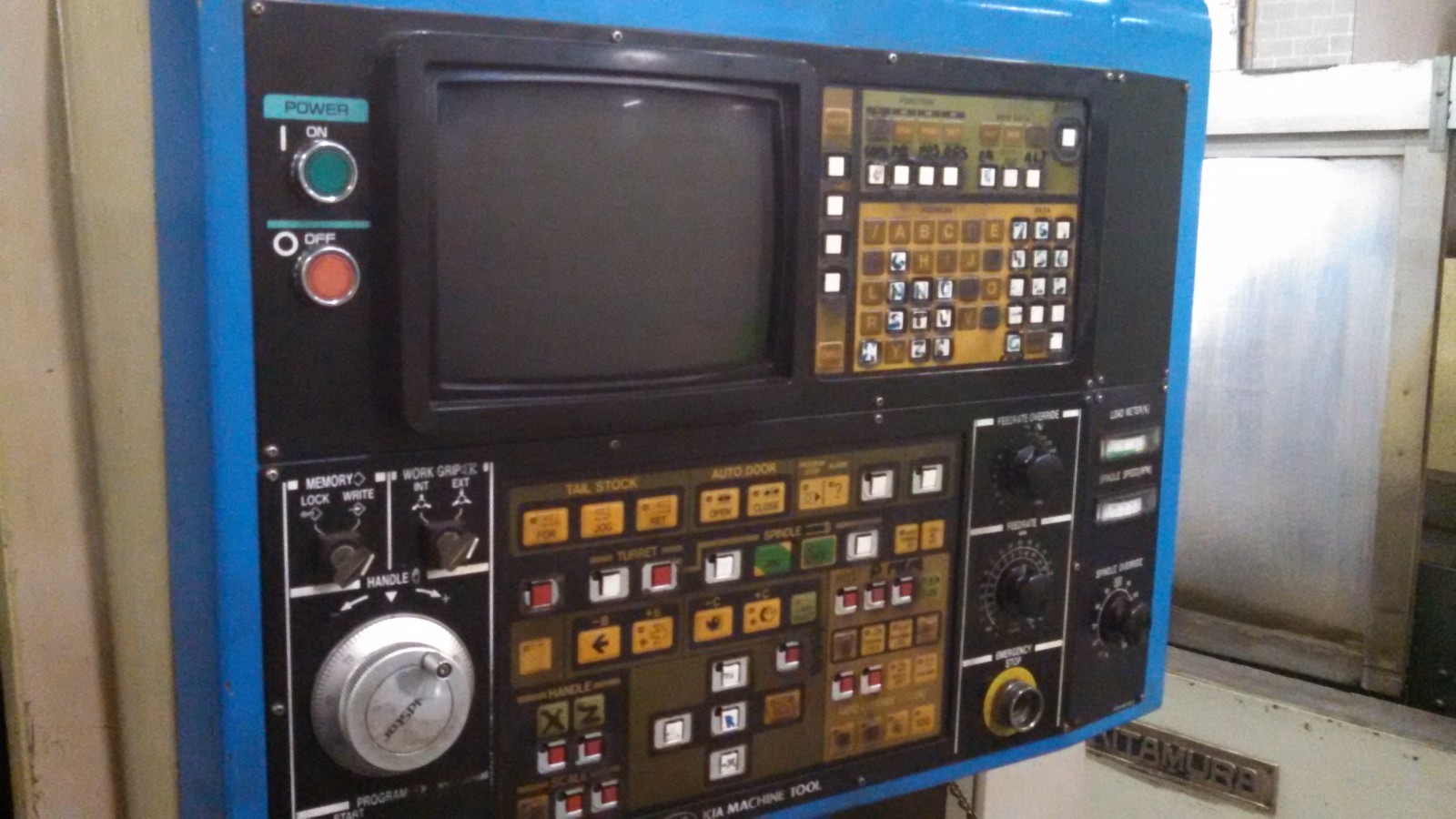

ControlYasnac LX-3
Swing23"
BarCapacity3"
MachiningLength23.6"
TurningDia12.2"
ChuckSize10”
Power10/15 HP
TailstockMT#5
Weight17,636 Lbs.
Length123”
Width35”
Height82”
catalogid5100
mfgKia Turn
mpn28
titleKia Turn 28 CNC Turning Center Lathe

Zero? Available Machines

Available Machine # Ez15834

  • Stock#:Ez15834
  • Price:$18,500
  • Year:1996
  • Region:Midwest
  • Condition:Used
Specifications: Control Yasnac LX-3 Swing 23" Bar Capacity 3" Spindle Bore 3.07" Max Turn Length 23.6" Max Turn Diameter 12.2" Chuck Size 10” Spindle Nose A2-8 Spindle Motor 10/15 HP Tailstock Taper MT#5 Tailstock Quill Travel 3.93" Tailstock Stroke 17.7” Turret Stations 10 Machine Weight 17,636 Lbs. Machine Dimensions 123”L x 35”W x 82”H Equipped With: 10” System Schnuck German Made Chuck Tool Setter Parts Catcher (4) Tool Holders Chip Conveyor Manuals
