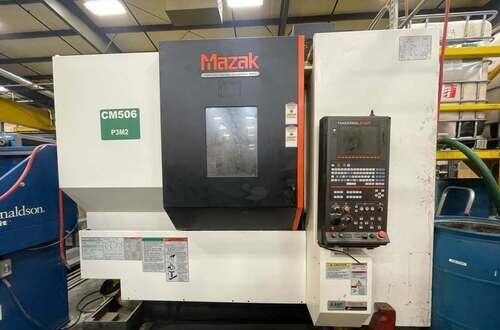

Mazak Vertical Center Universal 500c Vertical Machining Centers

Specifications

BrandMAZAK
ModelVERTICAL CENTER UNIVERSAL 500C
TypeVertical Machining Centers
ControlCNC
Lower1
X39.37 inch
Y19.88 inch
Z20.07 inch
Power20 hp
Upper21
RPM12000 rpm
ATC20
Taper40
Axis3

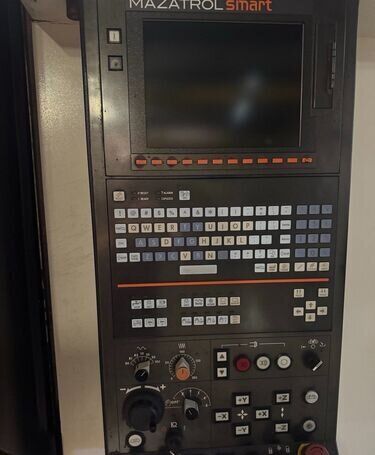

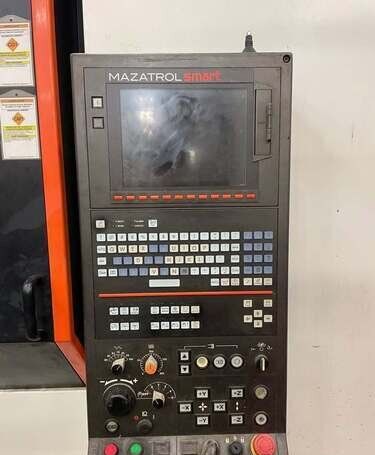

sellerspecBRNLTravels: BRNLX-Axis 39.37” BRNLY-Axis 19.88” BRNLZ-Axis 20.08” BRNLTable Size 19.69” x 41.34” BRNLWorkpiece Size 19.69” x 39.37” BRNLWorkpiece Height 20.07” BRNLMax. Table Load 1,300 lbs BRNLTable Surface Height 26.97” BRNLSpindle Face to Table Surface (Min/Max) 4.53” / 21.65” BRNLSpindle Speed 12,000 RPM BRNLSpindle Taper CAT#40 BRNLSpindle Motor 25 HP BRNLTool Changer 30 BRNLMax. Tool Diameter 4.92” BRNLMax. Tool Length 10.23” BRNLRapid Traverse Rate 1181 IPM Equipped With: BRNLSmart Control BRNLWired for Renishaw Probe BRNLRenishaw OTS-AA Optical Tool Setter BRNLThru Spindle Coolant 71 PSI BRNLTouchsetter
catalogid3618
mfgMAZAK
mpnVERTICAL CENTER UNIVERSAL 500C
titleMazak Vertical Center Universal 500c Vertical Machining Centers
joinSig

Zero? Available Machines

Available Machine # Ez46966

  • Stock#:Ez46966
  • Price:Call
  • Year:2019
  • Region:South
  • Condition:Used
