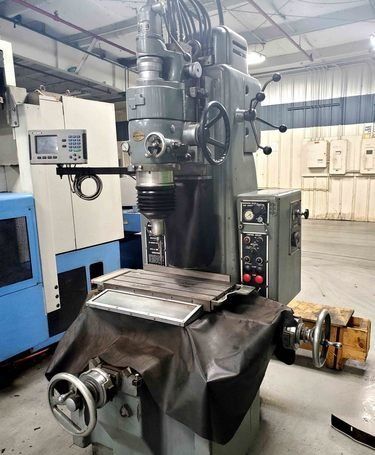

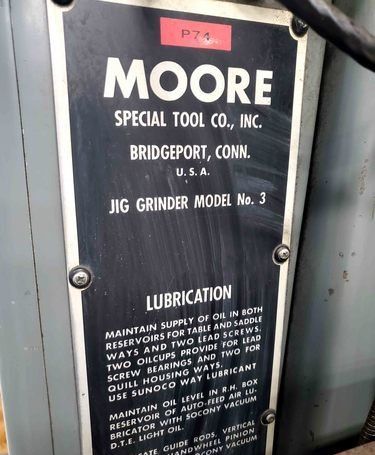

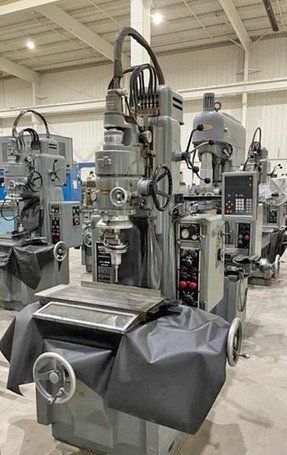

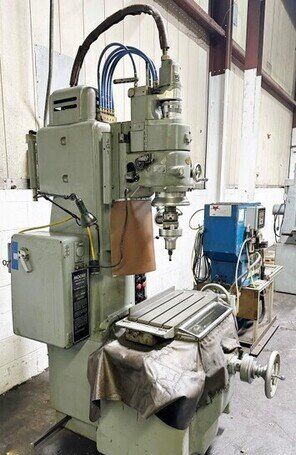

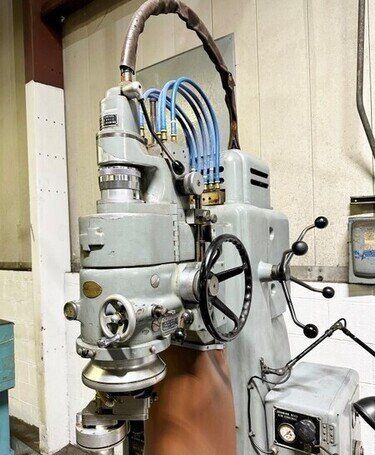

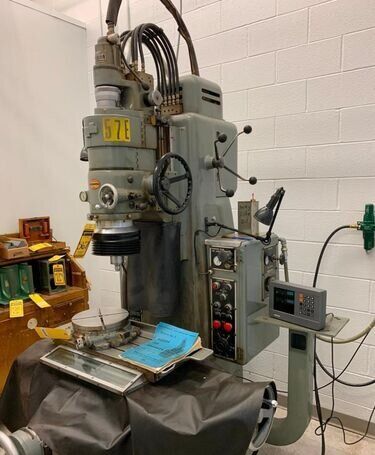

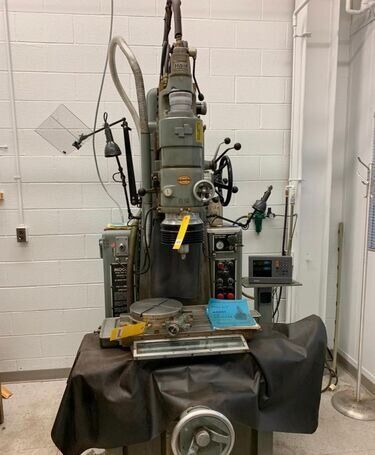

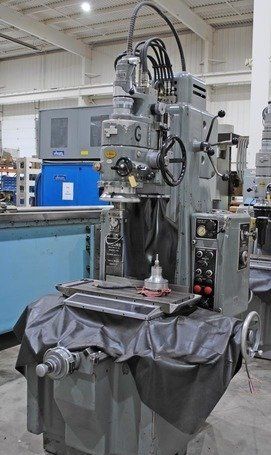

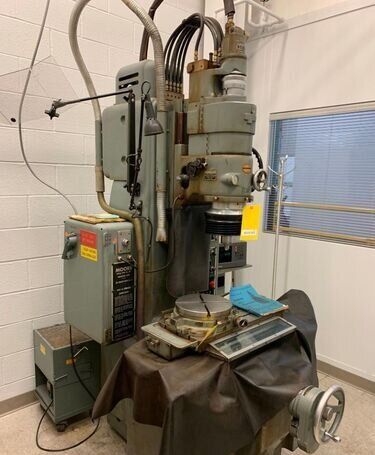

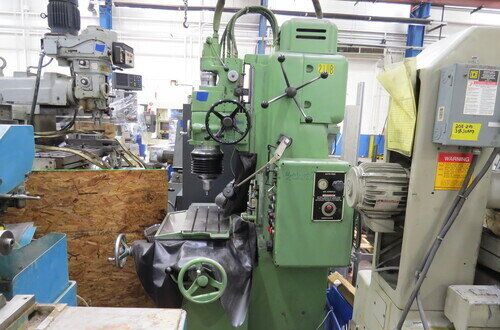

Moore No.3 Jig Grinder

Specifications

Model#3
BrandMoore
TypeVertical Machining Centers
Weight4,000 Lbs.
Length49"
Width61"
Height86"
RPM25 to 225 RPM
TableW11"
TableL24"
Power3-5/8" (Power)
catalogid4868
mfgMoore
mpn#3
titleMoore No.3 Jig Grinder
joinSig

Zero? Available Machines

Available Machine # Ez14632

  • Stock#:Ez14632
  • Price:$8,950
  • Year:1960
  • Region:Northeast
  • Condition:Used

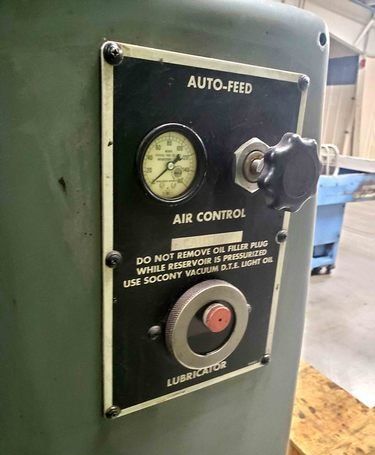

Specification: Model # 3 New Date: 1960 Table Size: 11" x 24" Longitudinal Table Travel: 18" Cross Table Travel: 11" Spindle Head Vertical Travel: 12-5/8" (Manual) Spindle Travel: 3-5/8" (Power) Distance Table to Spindle: 2" Min. to 18" Max. Center of Spindle Back to Column Ways: 10" Center of Spindle Back to Below Column Ways: 13-1/2" Variable Spindle Rotation Speeds: 25 to 225 RPM Variable Spindle Feeds: 2 to 120 SPM Range of Hole Sizes That Can Be Ground: 1/64" to 3-1/2" Dia. Max. Dia. of Hole Ground with Extension Plate: 13-1/2" (NOT SUPPLIED) EQUIPPED WITH: (1) Grinding Head, Speed Rate Unknown (1) Machine Work Light Nylon Way Cover All Around Table Hard Square Box Style Ways in Good Condition Manually Adjustable Grinding Head Spindle Temperature Gage Micrometer Adjustable Head Carrier Stop Adjustable Air Control of Grinding Head (5) Grinding Head Rotation Speeds, Rate Unknown Adjustable Auto Feed Air Controller Central Lubrication System Air Regulator with Filter Bowl One Shot Lubrication System to Table Adjustable Plastic Grinding Shield Guard Wired for 3 Phase, 60 Hz, 440 Volts ONLY Overall Size: 49" L-R x 61" F-B x 86" High x 4,000 Lbs.

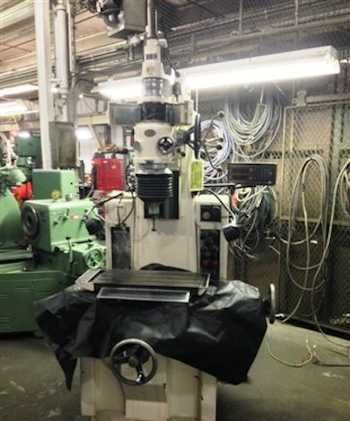

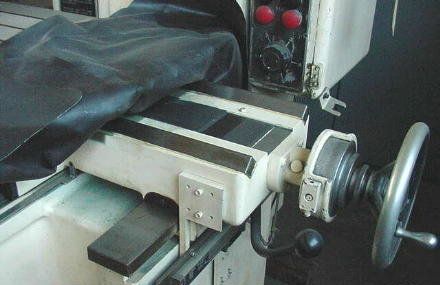

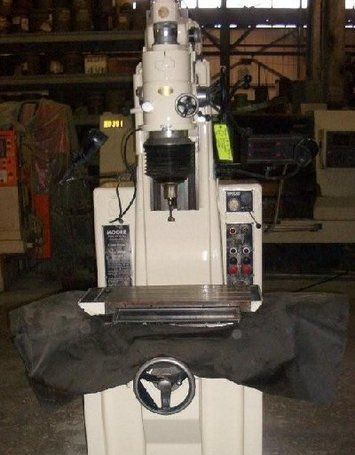

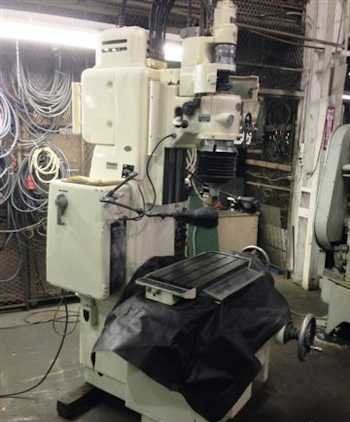

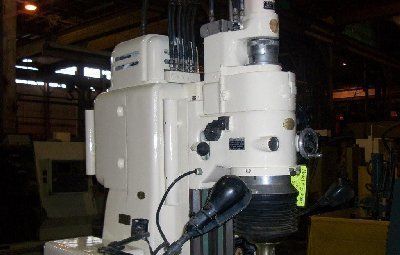

Available Machine # Ez27416

  • Stock#:Ez27416
  • Price:$10,900
  • Year:1963
  • Region:Midwest
  • Condition:Used

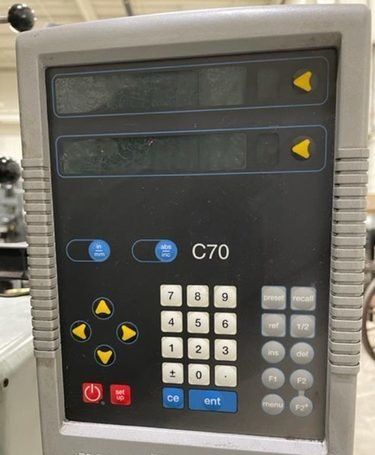

MODEL #3 G-18 MOORE JIG GRINDER 60,000 RPM Spindle, 11" x 24" T-Slotted Table, Temperature Gage on Head, Sargon 2-Axis Digital Readout

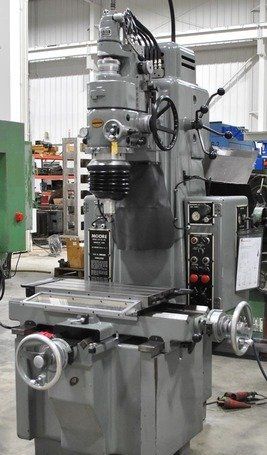

Available Machine # Ez25480

  • Stock#:Ez25480
  • Price:Call
  • Year:1968
  • Region:Midwest
  • Condition:Used

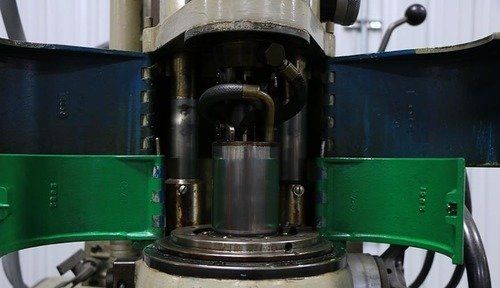

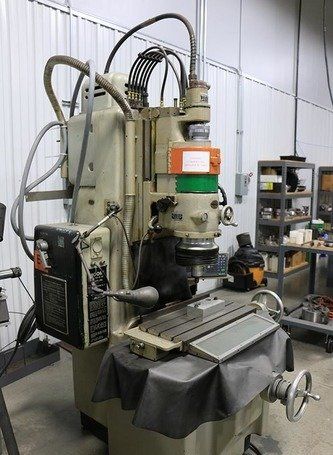

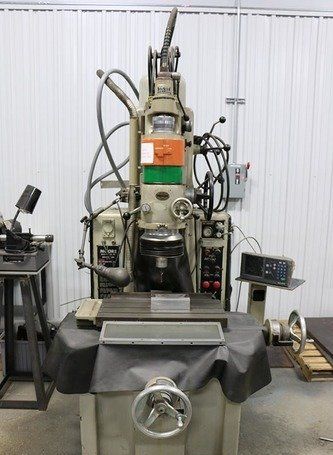

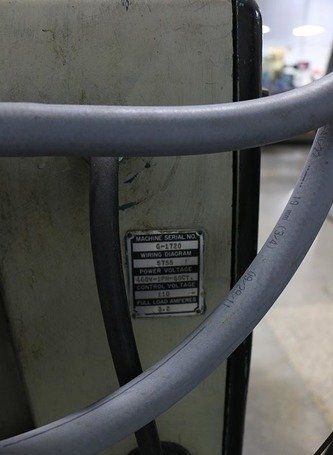

Available Machine # Ez28953

  • Stock#:Ez28953
  • Price:$11,900
  • Year:1971
  • Region:Northeast
  • Condition:Used

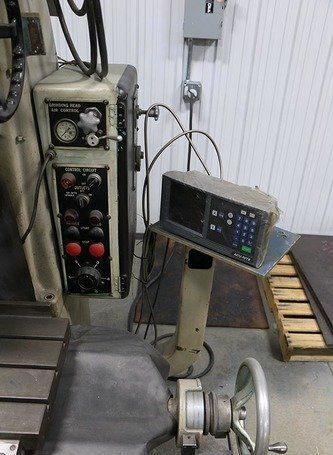

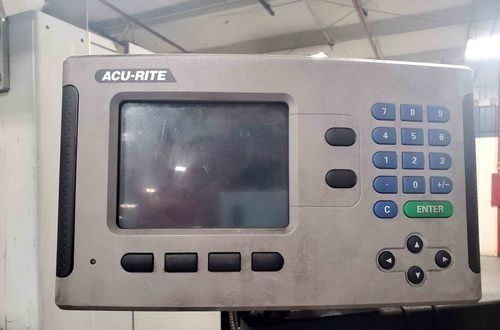

EQUIPPED WITH: "ACU-RITE" 2-AXIS DIGITAL READOUT DISPLAY HARDENED, GROUND AND LAPPED STEEL WAYS (NO GIBS) HARDENED, GROUND & LAPPED LEAD SCREWS 1/2 HP VARIABLE DC MOTOR WITH RECTIFIER (1) MOORE 40,000 RPM JIG GRINDING HEAD MACHINE IS WIRED FOR 460 VOLTS/1PH/60Hz ELECTRICS

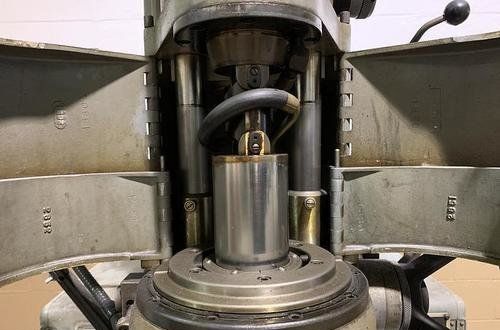

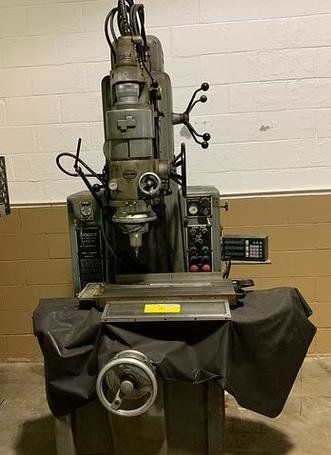

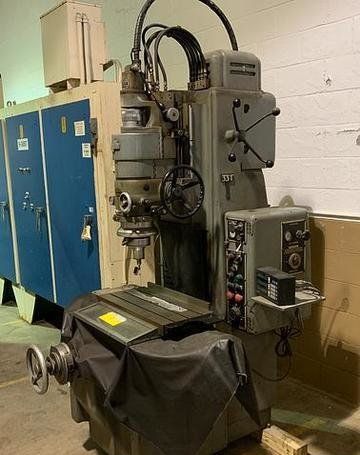

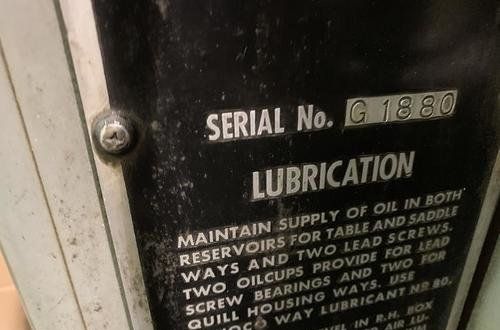

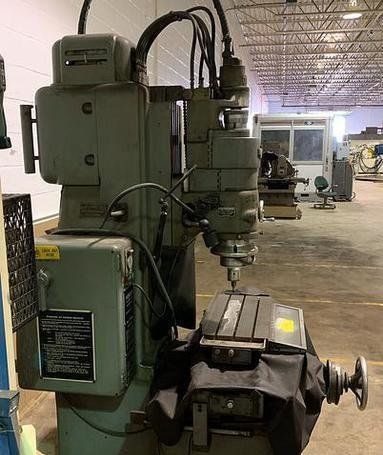

Available Machine # Ez38567

  • Stock#:Ez38567
  • Price:Call
  • Year:1973
  • Region:United States
  • Condition:Used

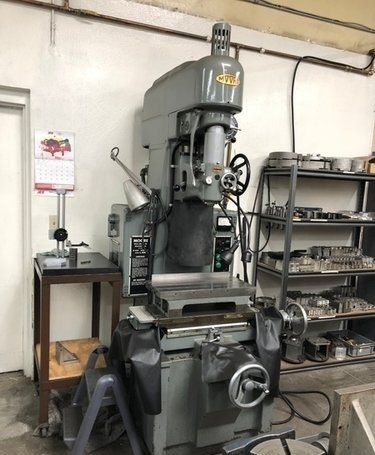

Available Machine # Ez42187

  • Stock#:Ez42187
  • Price:Call
  • Year:N/A
  • Region:West
  • Condition:Used

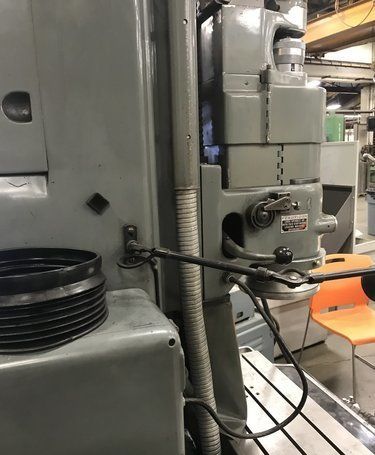

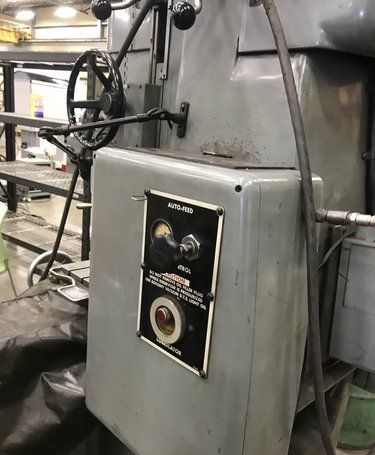

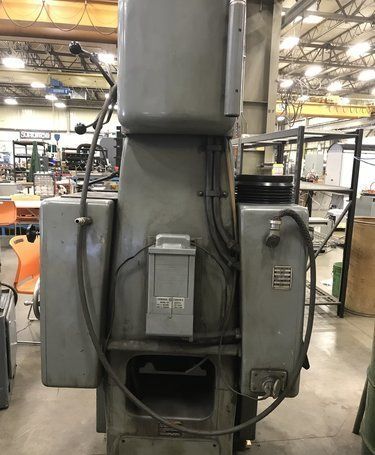

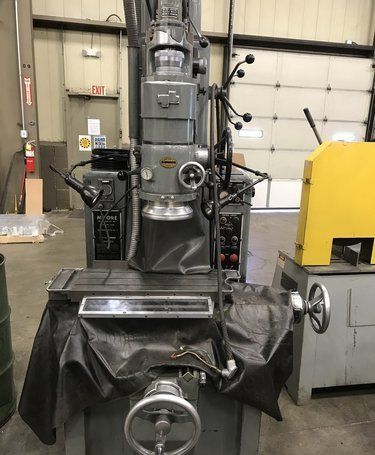

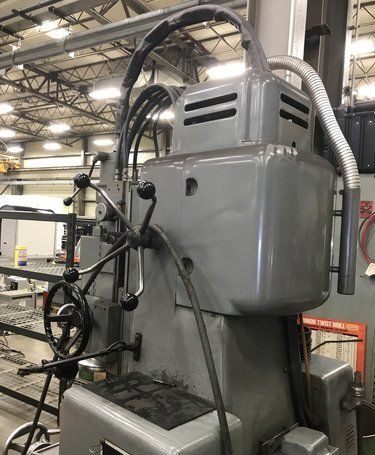

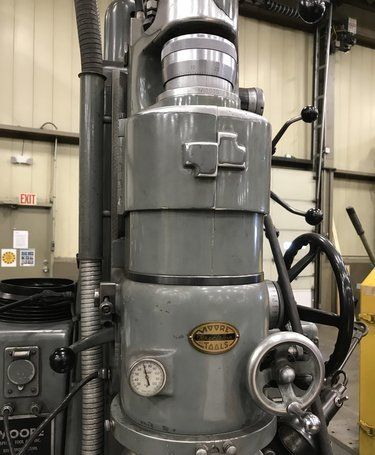

Available Machine # Ez51068

  • Stock#:Ez51068
  • Price:Call
  • Year:N/A
  • Region:United States
  • Condition:Used

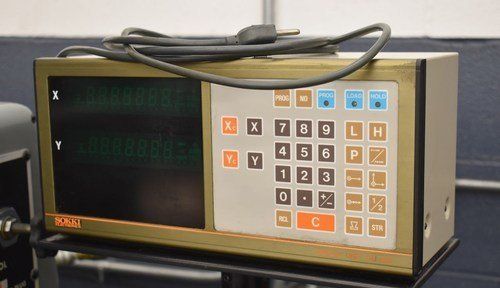

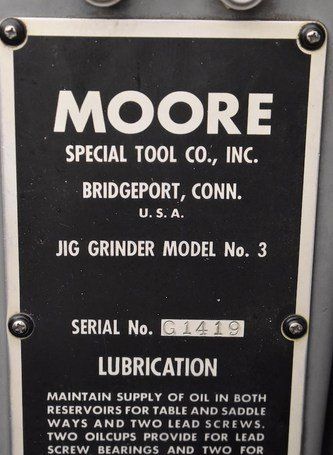

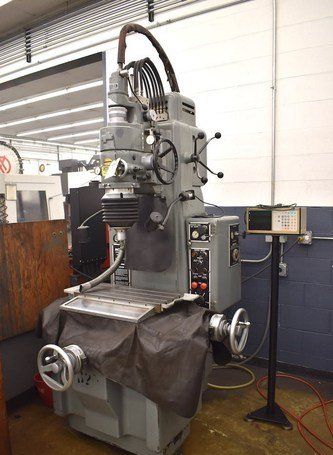

Available Machine # Ez36007

  • Stock#:Ez36007
  • Price:Call
  • Year:N/A
  • Region:United States
  • Condition:Used

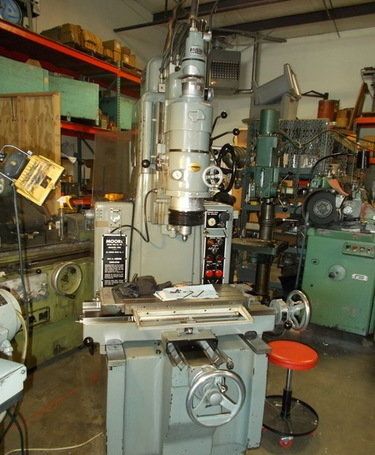

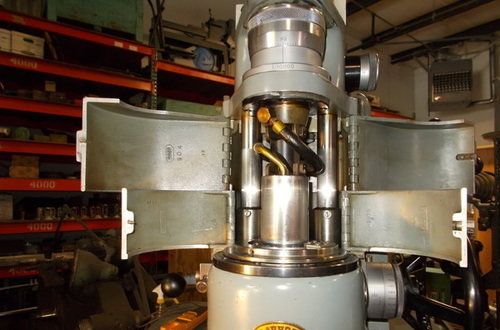

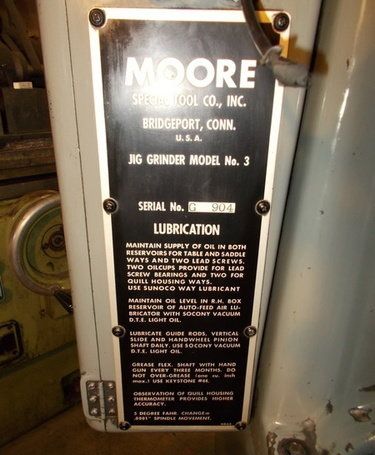

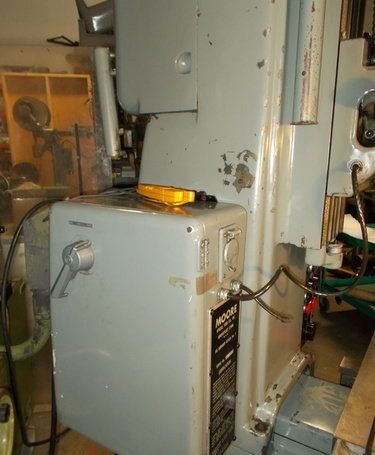

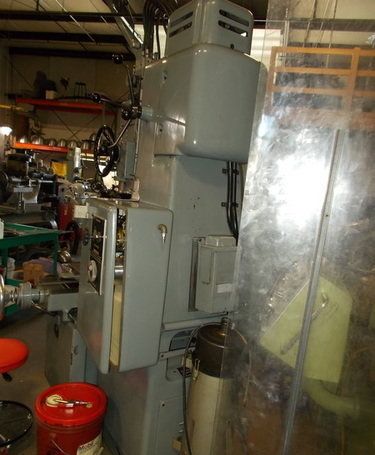

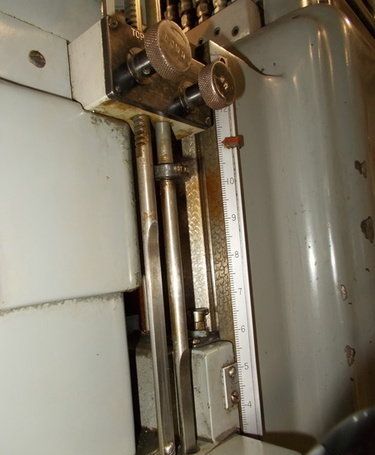

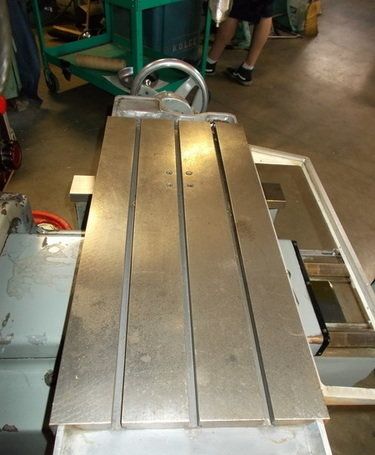

Available Machine # Ez31325

  • Stock#:Ez31325
  • Price:$12,000
  • Year:N/A
  • Region:West
  • Condition:Used



Available Machine # Ez25756

  • Stock#:Ez25756
  • Price:Call
  • Year:N/A
  • Region:Midwest
  • Condition:Used

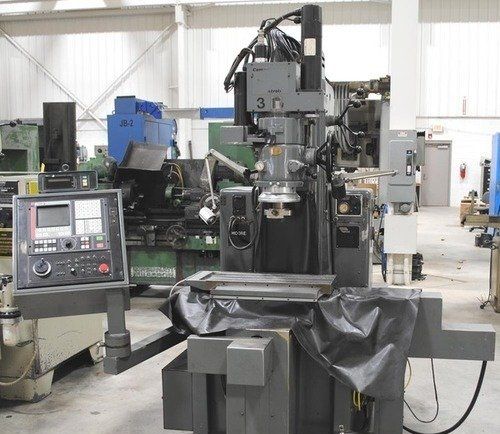

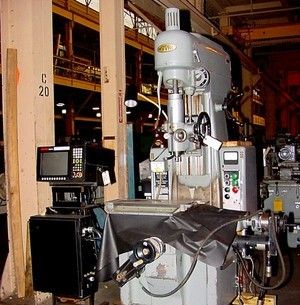

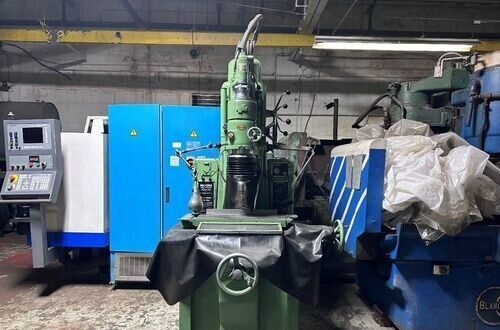

Moore/NASA No. 3 AGS3 4-Axis CNC Jig Grinder, 11" X 24" Table, Fagor 8030 4-Axis Control.
