Okuma ES-L10 CNC Lathes
Specifications
| Model | ES-L10 |
| Brand | OKUMA |
| Type | CNC Lathes |
| Control | CNC (OSP U10L) |
| ChuckSize | 10 inch |
| BarCapacity | 2.75 inch |
| Axis | 2 |
| Power | 20 hp |
| MaxRPM | 3000 rpm |
| TurningDia | 12.2 inch |
| Swing | 21.65 inch |
| MachiningLength | 19.68 inch |
| Tailstock | Yes |
| LiveTooling | No |
| SubSpindle | No |
| Weight | 8400 Lbs |
| catalogid | 1633 |
| mfg | OKUMA |
| mpn | ES-L10 |
| title | Okuma ES-L10 CNC Lathes |
| joinSig |
Zero? Available Machines
Available Machine # Ez46113 | |
|
|
          | |
Available Machine # Ez54490 | |

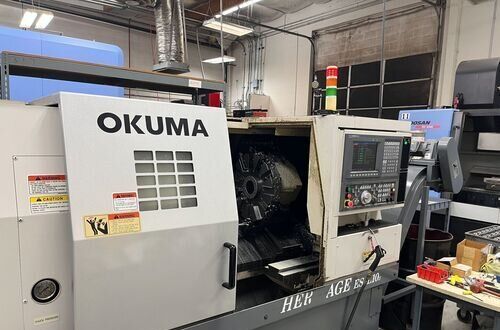

| 2011 OKUMA ES-L10 CNC LATHE OSP-U10L 10” 3-jaw hydraulic Max. turning diameter 12.2" Bar Capacity 3.1” Max. swing 20,8" Max. turning length 19.68" Tailstock MT # 5 Turret capacity 12 stations Rapid feed: X-axis 590 ipm Rapid feed: Z-axis 787 ipm Tooling Some boring bar holders Spindle speed 3000 rpm Main motor 20/15 HP Chip conveyor Yes Manuals Yes Machine weight 8,380 lbs. |
    | |
