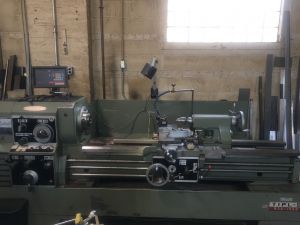

Tongil TIPL-5 Heavy Duty Precision Engine Lathe

Specifications

ModelTIPL-5
BrandTongil
TypeCNC Lathes
ControlNewall 2 Axis DRO
Weight6,283 Lbs.
Length126"
Width44"
Height66"
Power10 HP
Swing21"
MaxRPM1600 RPM
ChuckSize10"
catalogid5111
mfgTongil
mpnTIPL-5
titleTongil TIPL-5 Heavy Duty Precision Engine Lathe

Zero? Available Machines

Available Machine # Ez15922

  • Stock#:Ez15922
  • Price:$12,000
  • Year:N/A
  • Region:Midwest
  • Condition:Used

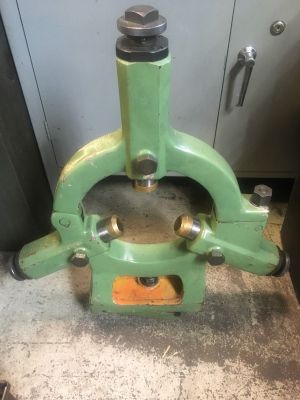

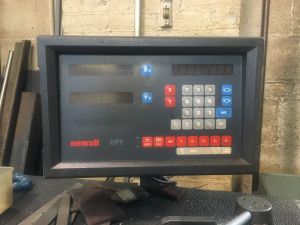

Specifications: Swing Over Bed 21" Swing Over Cross Slide 12" Swing In Gap 29" Distance Between Centers 61" Spindle Hole 3.07" Spindle Nose D-1-8” Camlock Spindle Speeds (12) (12) 22-1600 RPM Feed Range (English) 0.018"-0.25"/Rev Cross Feed………………………. .0009-.01”/Rev Main Drive Motor 10 HP Electrical 230V/3-Ph Approximate Dimensions 126" x 44" x 66"H Approximate Weight 6,283 Lbs. Equipped With: Newall 2 Axis DRO Gap Bed 10" 6-Jaw Chuck (Not Pictured) Auto-Feed Threading Steady Rest Tool Post Tailstock
