Trumpf Trumabend V85s Press Brakes

Specifications

BrandTRUMPF
ModelTRUMABEND V85S
TypePress Brakes
imagesnone
catalogid6661
mfgTRUMPF
mpnTRUMABEND V85S
titleTrumpf Trumabend V85s Press Brakes
joinSig

Zero? Available Machines

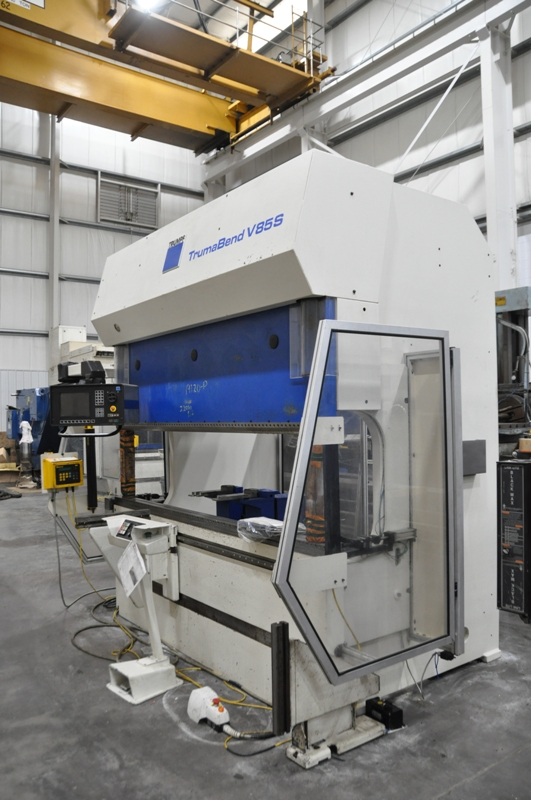

Available Machine # Ez35888

  • Stock#:Ez35888
  • Price:$49,500
  • Year:1997
  • Region:Northeast
  • Condition:Used
1997 Truma Bend V85S 100" X 93 TON TRUMPF HYDRAULIC PRESS BRAKE

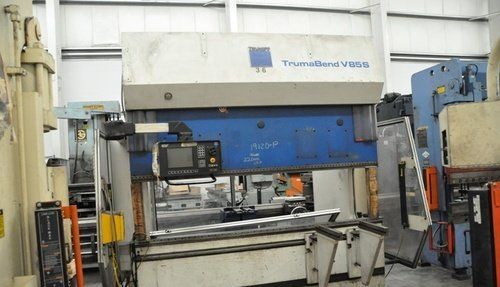

Available Machine # Ez33036

  • Stock#:Ez33036
  • Price:$59,500
  • Year:1999
  • Region:Northeast
  • Condition:Used
100" X 93 TON TRUMPF HYDRAULIC PRESS BRAKE
Rated Tonnage: 93.67 Tons Bed Length: 100" Distance Between Frames: 89" Stroke: 14.37" (365 mm) Maximum Bed-Press Beam Distance: 25" Open Height: 21" Throat: 16" Width of Bed: 4.75" Ram: Y Axis (Y1, Y2) Rapid Speed: 472" Per Minute Operating Speed: 2" to 24" Per Minute Return Speed: 320" Per Minute EQUIPPED WITH: Delem Control 6-Axis Back Gage X1, X2 X Axis Travel: 23.6" Maximum Distance in X: 33.5" Maximum Speed of X Axis: 1200" Per Minute R1, R2 Travel of R Axis: 9.8" Maximum Speed of R Axis: 710" Per Minute Z1, Z2 Maximum Speed of Z Axis: 1900" Per Minute Program Controlled Lower Tool Adjustment (I-Axis) Hardened Lower Tool Holder Self-Centering Upper Tool Holder Power Clamping to Upper Tool (2) Back Gage Finger Support Surfaces Controlled Beam Inclination Crowning (2) Adjustable Sheet Support Arms Light Curtains 15 HP Main Motor Oil Capacity: 53 Gallons Overall Size: 126" LR x 83" FB x 114" H x 22,000 Lbs.
