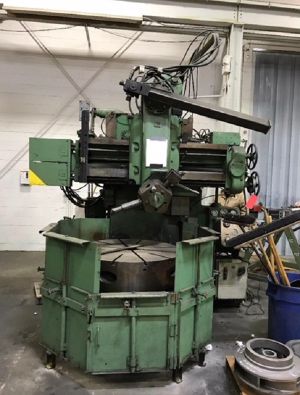

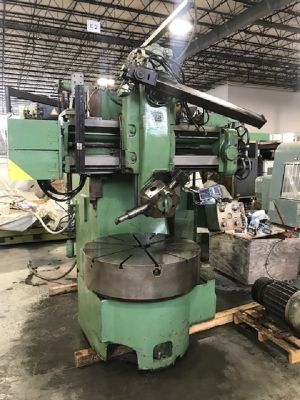

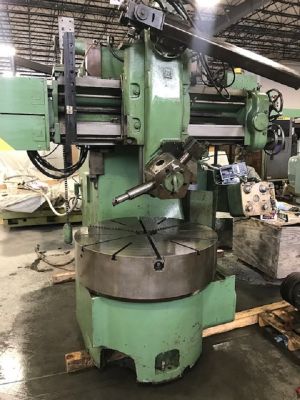

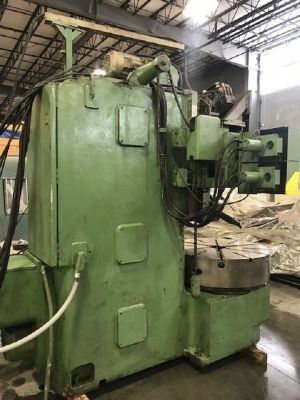

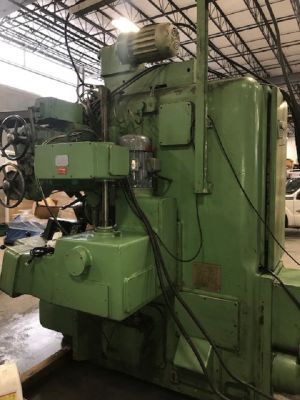

Webster & Bennett EM 42 inch Vertical Turret Lathe

Specifications

Model42 inch
BrandWebster & Bennett
TypeCNC Lathes
ChuckSize36"
Weight17,500 LBS
Height143"
Width80"
Length120"
MaxRPM10.5 - 208 RPM
Power30 HP
catalogid5258
mfgWebster & Bennett
mpn42 inch
titleWebster & Bennett EM 42 inch Vertical Turret Lathe

Zero? Available Machines

Available Machine # Ez17293

  • Stock#:Ez17293
  • Price:$34,500
  • Year:N/A
  • Region:South
  • Condition:Used

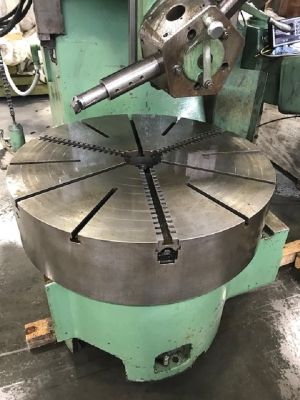

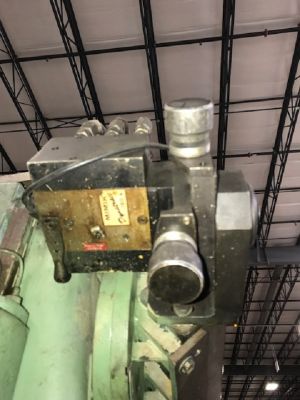

MODEL: EM SPECIFICATIONS: Standard is 36” but has Optional 42” 3 JAW CHUCK THAT IS INDEPENDENTLY ADJUSTABLE AND ALSO ALL 3 THREE AT ONCE DIAMETER OF CHUCK....................... 36" ADMITS IN DIAMETER...................... 46" MAX. DIAMETER TURNED FOR LENGHT OF B2X TOOLHOLDER....................... 46" MIN. HEIGHT UNDER CROSS SLIDE........... 19" MAX. HEIGHT UNDER CROSS SLIDE........... 40" VERTICAL ADJUSTMENT OF CROSS SLIDE...... 21" MAX. HEIGHT UNDER TURRET................ 48" VERTICAL TRAVEL OF TURRET SLIDE......... 34" DIAMETER OF SPINDLE BORE................ 3 1/4" HORIZONTAL LEAD OF TURRET FROM CHUCK CENTER OUTWARDS...................... 28" DIAMETER OF TURRET HOLES................ 2 1/2" SPINDLE SPEDS (12)...................... 10.5 - 208 RPM FEEDS (12).............................. 0.005 - 0.250 IPM MAIN MOTOR.............................. 30 HP ELECTRICS............................... 220/440 VOLTS RAPID TRAVERSE MOTOR.................... 4 HP CROSS SLIDE ELEVATING MOTOR............. 4 HP APPROX. FLOORSPACE...................... 80" X 120" WORKING HEIGHT REQUIRED................. 143" APPROX. WEIGHT.......................... 17,500 LBS EQUIPPED WITH: MIMIK MODEL 180 TRACER TRAC 2-AXIS DRO TURRET TOOLHOLDERS (1) SET OF STANDARD CHUCK JAWS POWER ELEVATING CROSS RAIL HYDRAULIC CLAMPING TO CROSS RAIL NOTE: SPLASH GUARDS INCLUDED TEMPORARY SPECIFICATION SUBJECT Verify by in person inspection
