CUBIC POLY GIM PLG-42 CNC LATHE
Specifications
| Model | PLG-42 |
| Brand | CUBIC POLY GIM |
| Type | CNC Lathes |
| Weight | 3696 lbs. |
| Control | FANUC 0i MATE - TC CNC |
| Length | 96" |
| Width | 49.6" |
| Height | 72" |
| MaxRPM | 6000 RPM |
| Power | 7.5 HP |
| ChuckSize | 6" |
| TurningDia | 5.12" |
| Swing | 6.3" |
| BarCapacity | 1.63" |
| catalogid | 5602 |
| mfg | CUBIC POLY GIM |
| mpn | PLG-42 |
| title | CUBIC POLY GIM PLG-42 CNC LATHE |
| joinSig |
Zero? Available Machines
Available Machine # Ez19427 | |

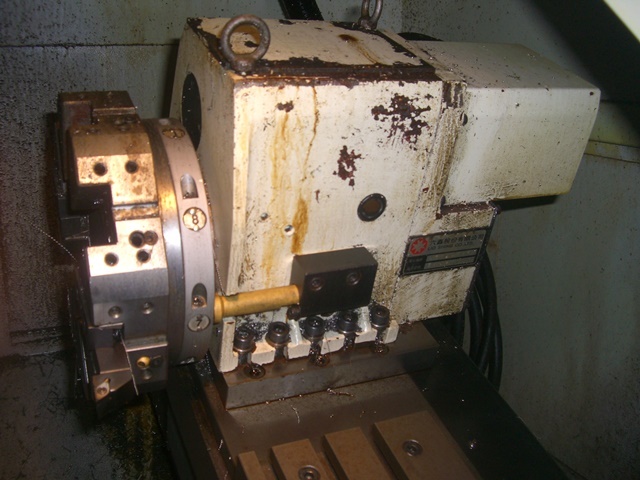

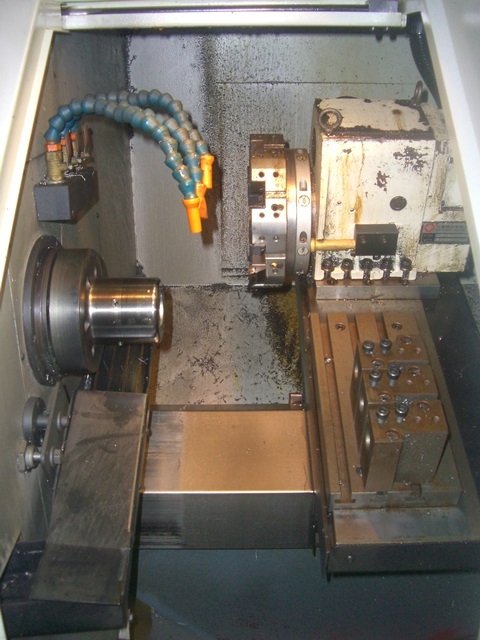

| 2006 CUBIC POLY GIM PLG-42 Chuck Size 6" Max Diameter Bar Capacity 1.63" Max Swing Over Bed & Carriage 6.3" Max Turning Diameter 5.12" Spindle Motor 7.5 HP Spindle Speed 100 - 6000 RPM Spindle Bore 2.99" Spindle Nose A2 - 5 Tools 8 Gang Slide 12" Rapid Traverse Rates (X / Z) 630 IPM X-Axis Travel 9.05" Z-Axis Travel 11.8" Turret Index (Single Step) 0.15 Seconds Machine Dimensions (L x W x H) 96" x 49.6" x 72" Machine Weight 3696 lbs. FEATURES: FANUC 0i MATE - TC CNC CONTROL 10.4" Color LCD 8 Position Drum Turret & Gang Tool Slide ATS A5-2J Collet Chuck Auto Parts Catcher Parts Exit Conveyor Chip Conveyor (Side Exit) Two Color Tower Light Chucker (No Tailstock) (3) Turning Holders for Turret (3) Boring Bar Holders for Gang Tool Slide
|
         | |
