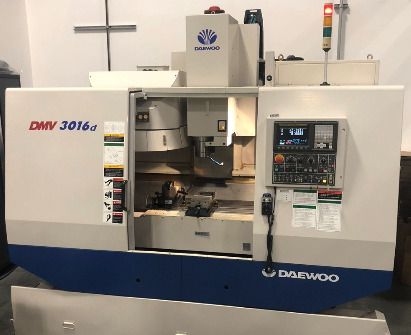

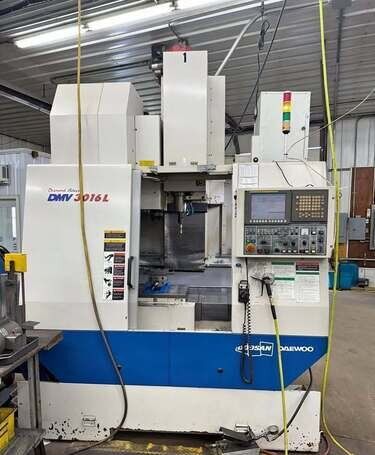

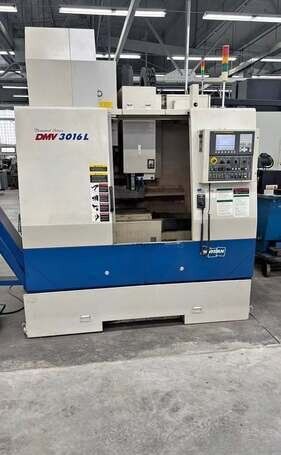

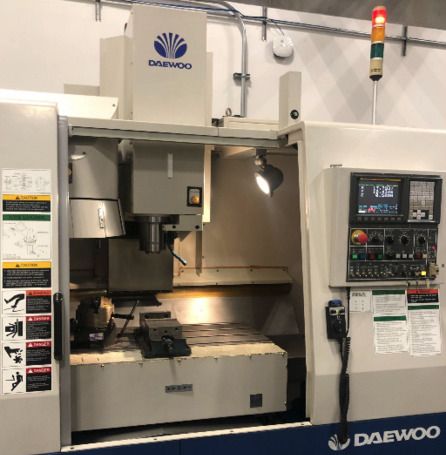

Daewoo DMV-3016 Vertical Machining Centers
Specifications
| Model | DMV-3016 |
| Brand | DAEWOO |
| Type | Vertical Machining Centers |

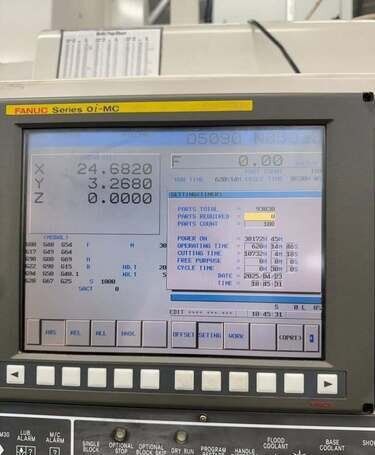

| Control | CNC (Fanuc OiMB) |
| X | 32.2 inch |
| Y | 16.1 inch |
| Z | 20.1 inch |
| Power | 15 hp |
| RPM | 12000 rpm |
| ATC | 24 |
| TableW | 17.7 inch |
| TableL | 39.4 inch |
| Taper | CAT-40 |
| Axis | 3 |
| Weight | 12,100 lbs |
| Length | 116 inch |
| Width | 94 inch |
| Height | 108 inch |
| catalogid | 161 |
| mfg | DAEWOO |
| mpn | DMV-3016 |
| title | Daewoo DMV-3016 Vertical Machining Centers |
| joinSig |
Zero? Available Machines
Available Machine # Ez82964 | |
|
|
    | |
Available Machine # Ez77169 | |
| X 30" Y 16" Z 20" Power 15 hp RPM 8,000 RPM # ATC 24 Table-W 16.9" Table-L 36" Taper CAT-40
|
  | |
Available Machine # Ez75737 | |
| 2004 Daewoo DMV 3016, X-Axis Travel 32.2"", Y-Axis Travel 16.1"", Z-Axis Travel 20.1"", Spindle Speed 12,000 RPM, Spindle Taper CAT 40, Tool Magazine Capacity 24 ATC, Control Fanuc, Chip Removal Chip Auger, Coolant 230 PSI Through Spindle Coolant
|
        | |
