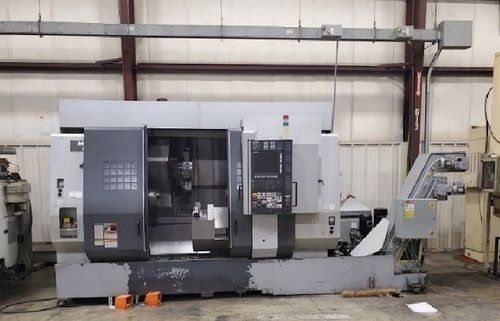

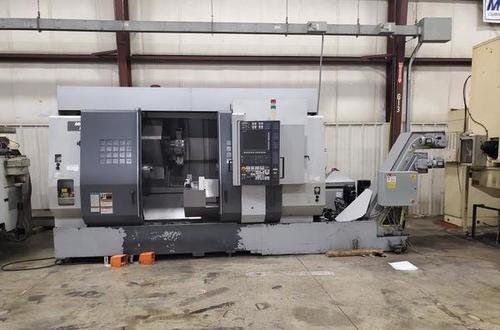

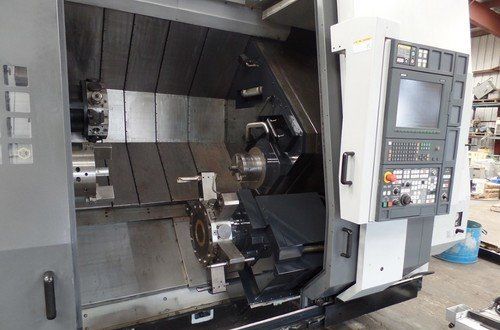

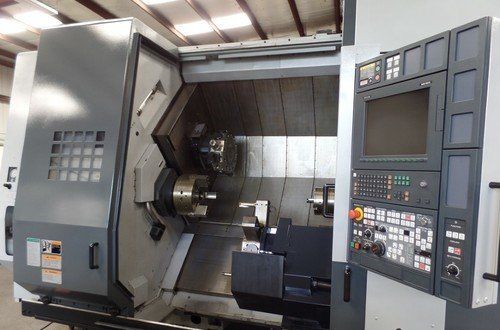

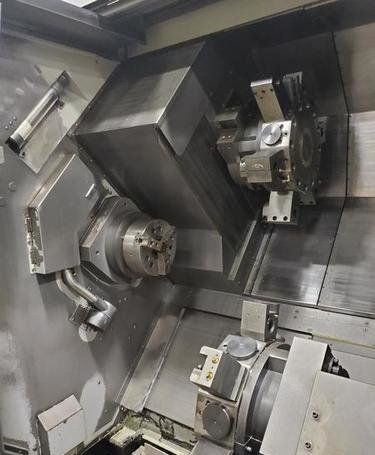

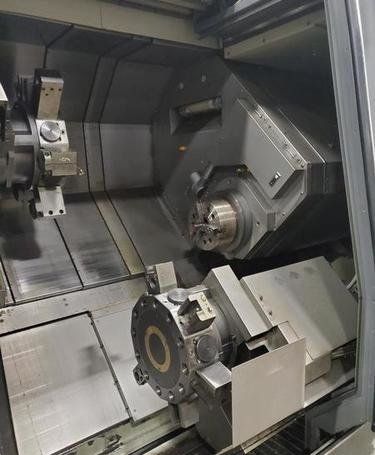

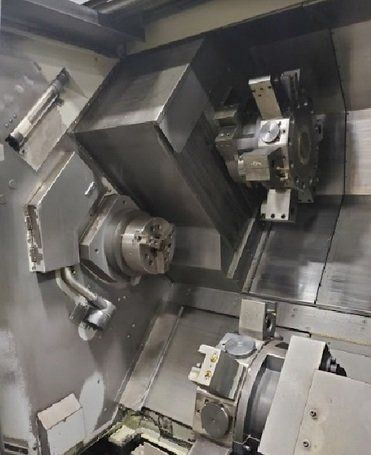

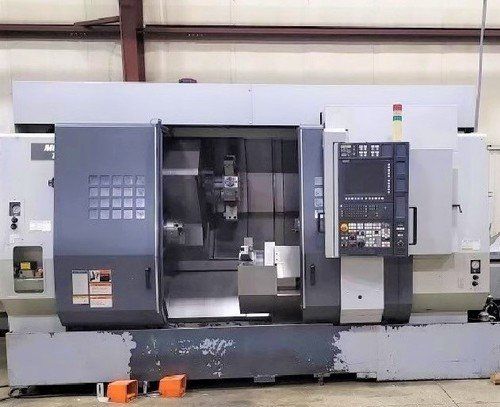

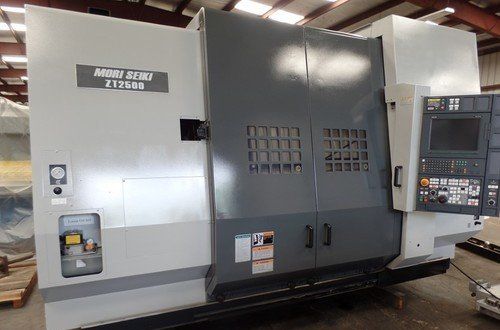

Mori Seiki ZT-2500Y 5-Axis or More CNC Lathes
Specifications
| Model | ZT-2500Y |
| Brand | MORI SEIKI |
| Type | 5-Axis or More CNC Lathes |

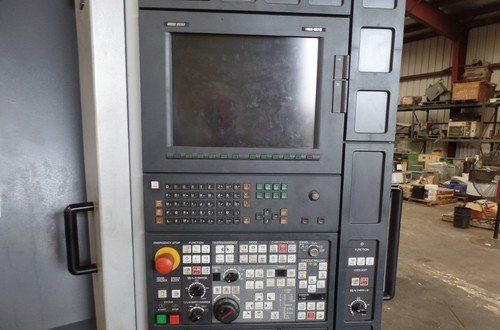

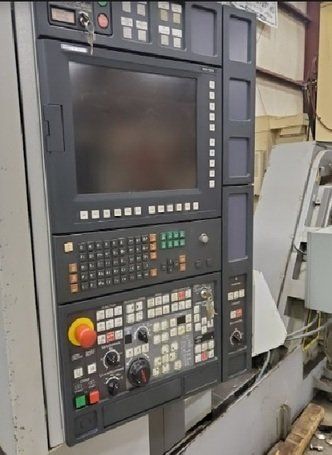

| Control | CNC (MSG-501 (Fanuc 18i)) |
| Axis | 6 |
| ChuckSize | 10 inch |
| BarCapacity | 2.87 inch |
| MaxRPM | 4000 rpm |
| TurningDia | 14.9 inch |
| Swing | 27.56 inch |
| MachiningLength | 51.18 inch |
| TailstockYesNo | No |
| Dimensions | 166inch x 109inch |
| Weight | 28600 (LBS) |
| catalogid | 1863 |
| mfg | MORI SEIKI |
| mpn | ZT-2500Y |
| title | Mori Seiki ZT-2500Y 5-Axis or More CNC Lathes |
| joinSig |
Zero? Available Machines
Available Machine # Ez88634 | |
|
|
          | |

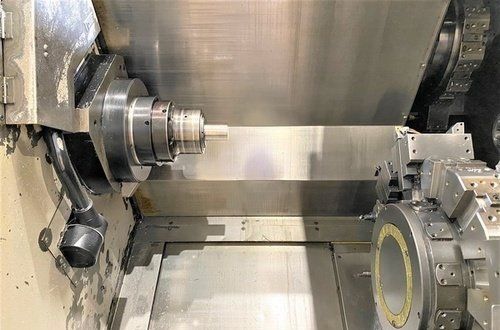

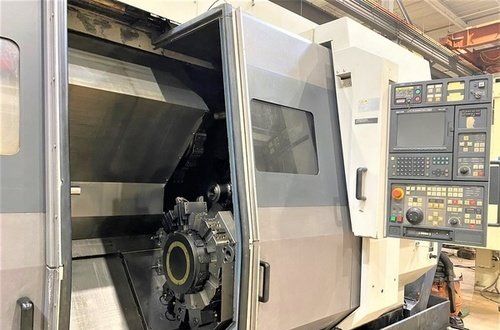

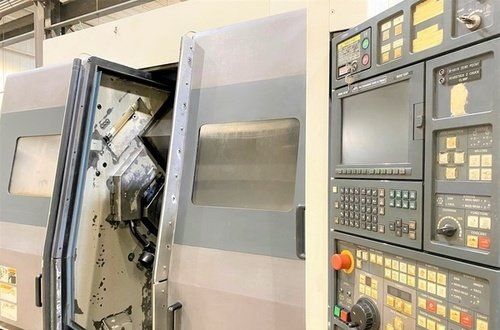

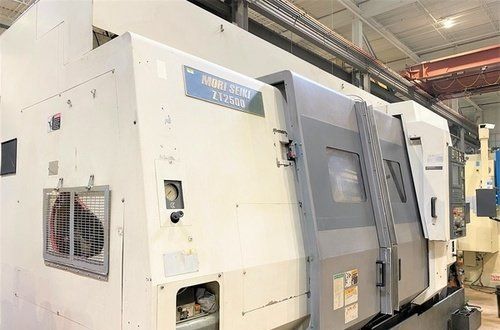

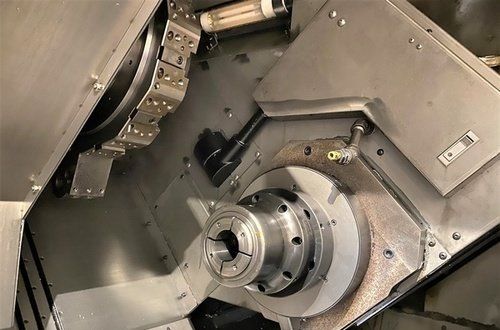

Available Machine # Ez77268 | |
|
|
     | |

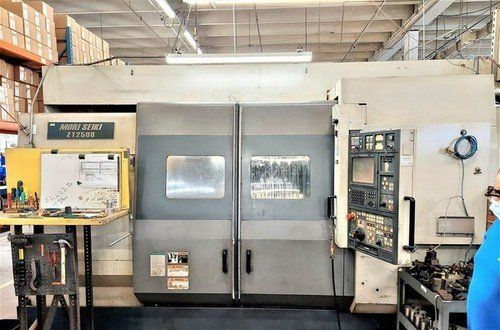

Available Machine # Ez66450 | |
|
|
 | |

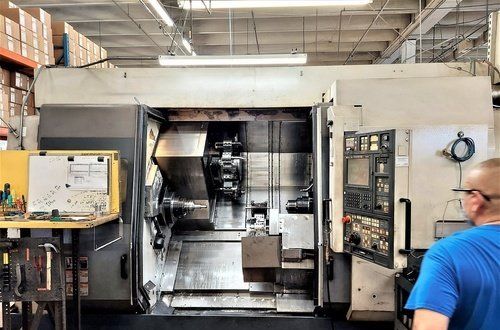

Available Machine # Ez65863 | |

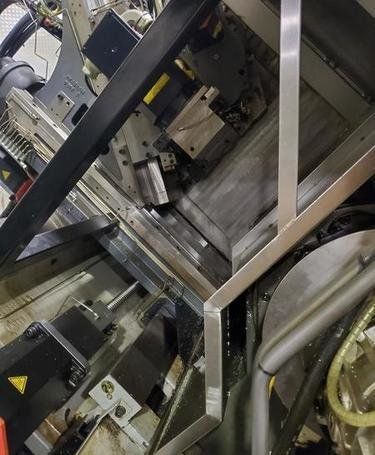

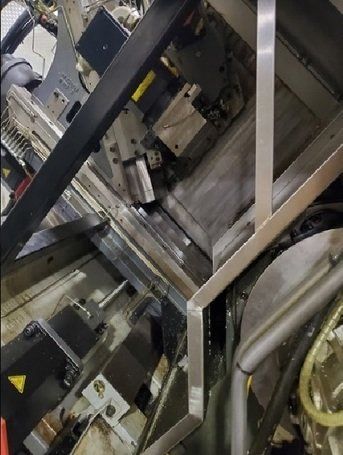

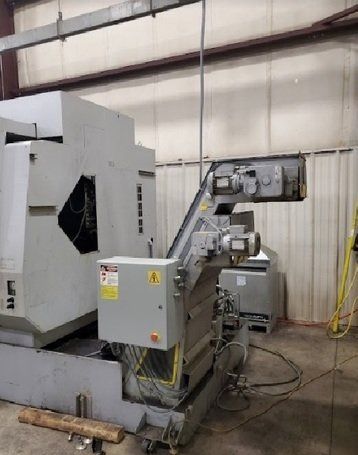

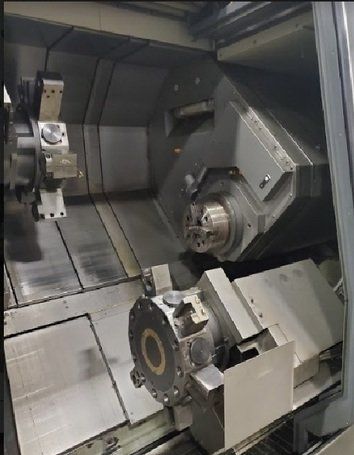

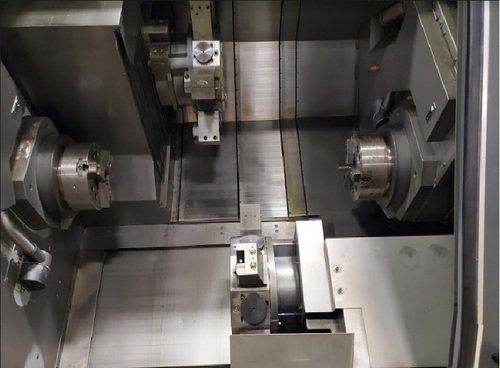

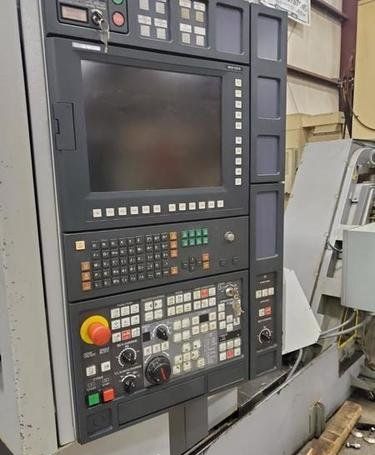

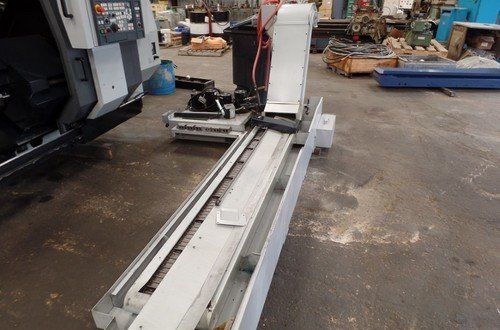

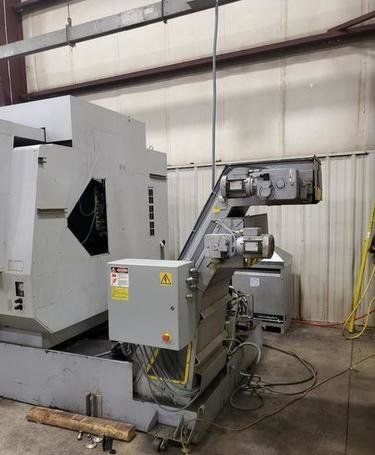

| Make Offer with eBay Mori Seiki Model ZT-2500Y 8-Axis CNC Lathe with Live Tool, Sub Spindle Maximum Turning Diameter: 14.9" Maximum Distance Between Spindles: 51.2" Maximum Turning Length: 14" Maximum Bar Capacity: 2.8" X1-Axis Travel: 11" X2-Axis Travel: Lower Turret 7.9" Z1-AXIS Travel: 37.8" Z2-Axis Travel: Lower Turret 38.8" Y-Axis Travel: +/- 2.9" C-Axis Indexing: 0.001 Degree Spindle Speeds: 4,000 Rpm Spindle Nose (Both): A2-8 Hole Through Spindle: 3.5" Number of Tool Positions: 12 Each Turret Rotary Tool Speed Range: Up to 4,000 Rpm X, Z, & B-Axes Rapid Traverse Rate: 945 Ipm Y-Axis Rapid Traverse Rate: 472 Ipm Approximate Machine Weight: 29,000 Lbs. Equipped with: Mitsubishi MSC 501 Cnc Control Tool Presetter Chip Conveyor Live Milling on all 12 Stations (both) Miscellaneous live tool holders Miscellaneous tool static holders (2) Electric Foot Pedals |
  | |

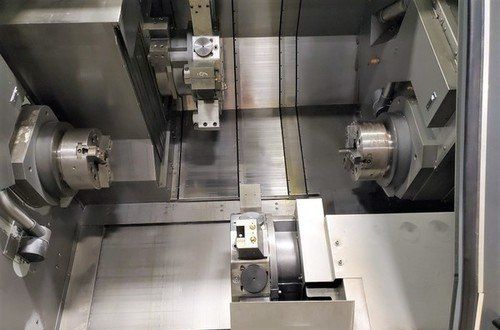

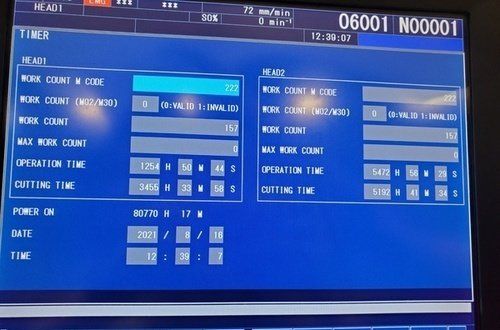

Available Machine # Ez66449 | |
|
|
     | |
